NOARK® Manual

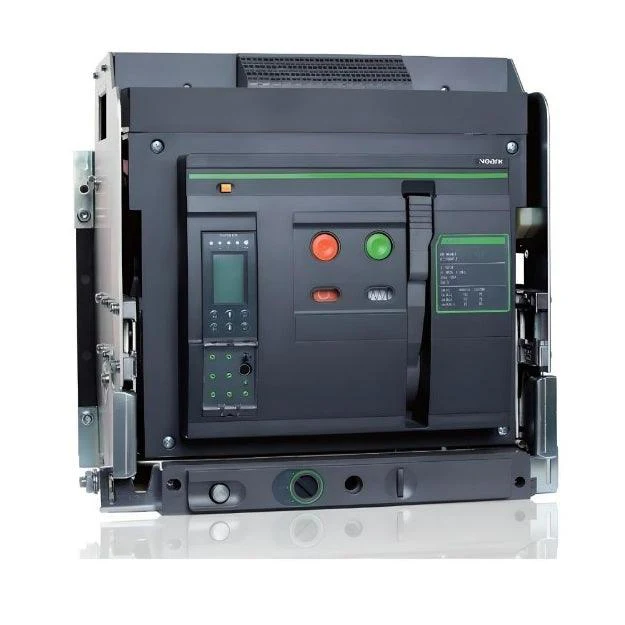

Product Details : A32 Power Circuit Breaker 2000A 65kA 3P Fixed | A32Q3FH2000

Part No: A32Q3FH2000
Product Type: Power Circuit Breaker
Frame Type: Circuit Breaker
Brand: NOARK®
Series: A32
Rated Current (Amps): 2000A
Interrupting Capacity or Withstand Rating: 65kA
No. Of Poles: 3
Frame Size: 3200 A
Mounting Type: Fixed
Terminal Orientation: Horizontal
Overall Dimensions: 15.43" (H) x 16.93" (W) x 12.22" (D)
Minimum Enclosure Dimensions: 21.65" (H) x 20.47" (W) x 14.17" (D)
Features:
•800A through 3200A Draw Out
•800A through 2500A Fixed
•IC ratings up to 100kA at 635V
•Short-Time Withstand,

Price

Collections

UL 1066 Power Circuit Breakers
