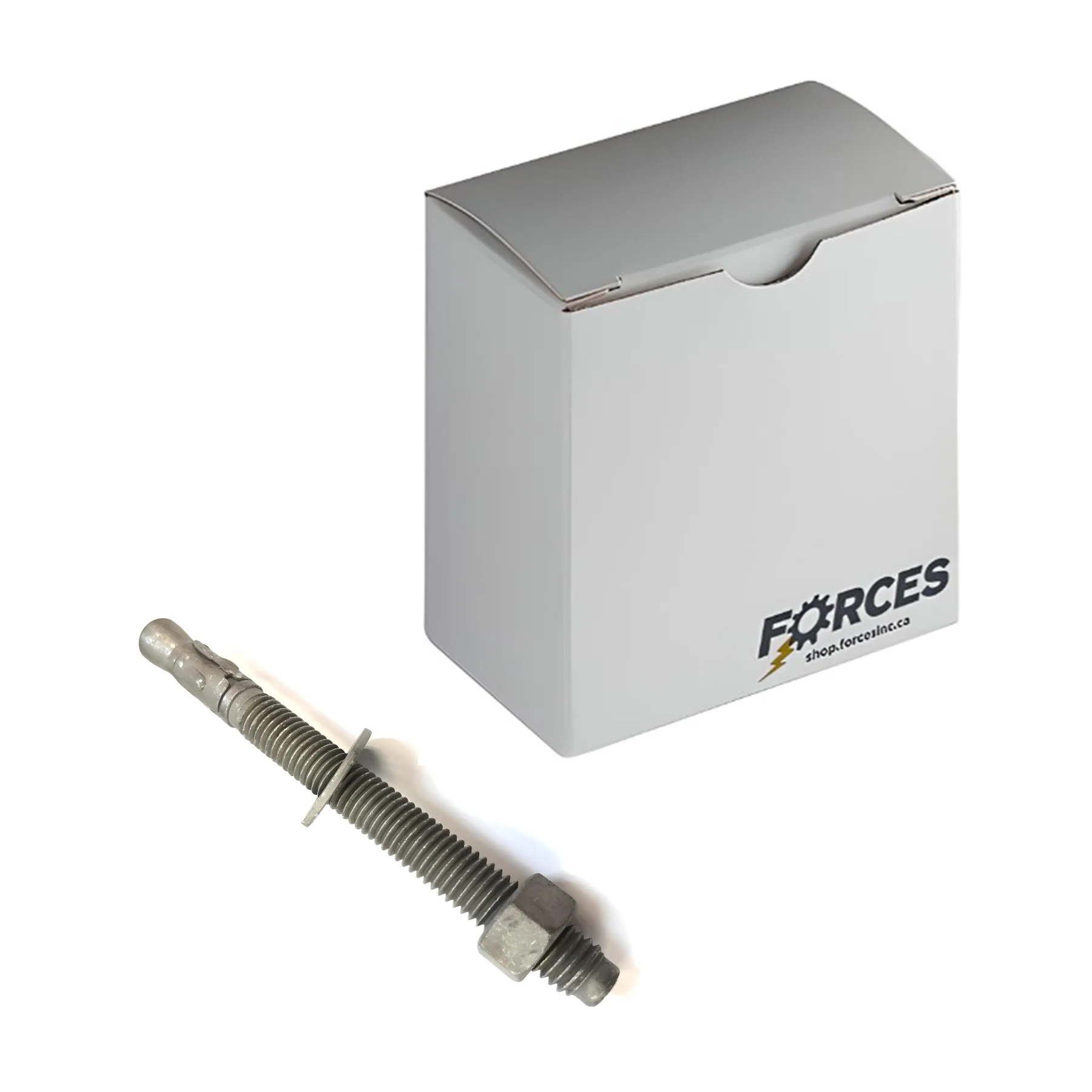

1/4" x 1-3/4" Wedge Anchor - Galvanized

Product Details : 1/4" x 1-3/4" Wedge Anchor - Galvanized

• Product Type: Wedge Anchor
• Drill Size: 1/4"
• Diameter: 1/4"
• Length: 1-3/4"
• Thread Length: 1/2"
• Load Capacity - Wall Mounted/Concrete: 294 kg
• Load Capacity - Ceiling Mounted/Concrete: 306 kg
• 2000 PSI Concrete -Pull Out (lbs): 877
• 2000 PSI Concrete -Shear (lbs): 1082
• Important Information: As a safety factor, industry standards recommend using 25% of the ultimate load (Break Point). Ultimate load in 2000 PSI concrete.
• Material(s): Galvanized

For any information about products, please contact us.

*Photos for reference purposes only.
