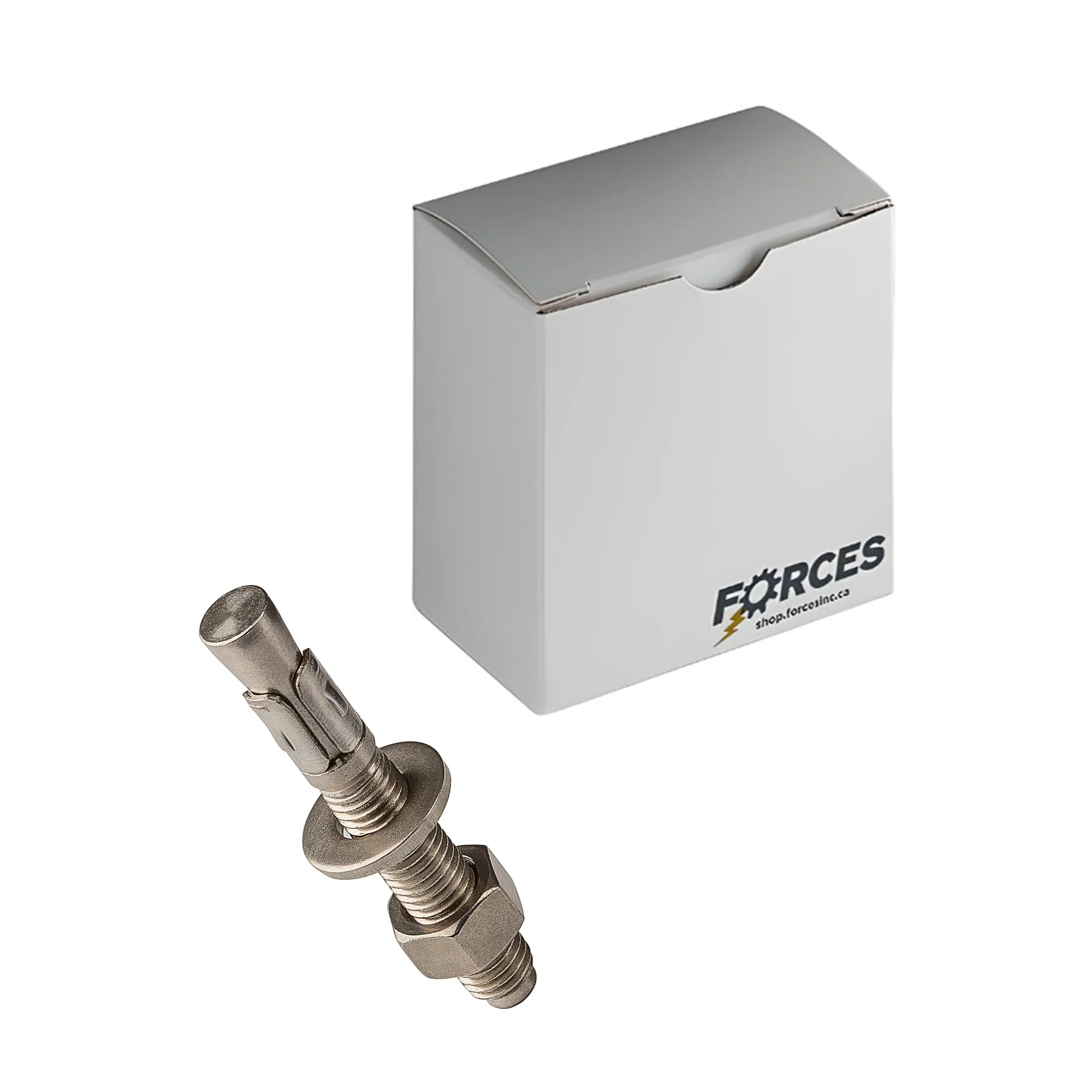

3/8" x 3" Wedge Anchor - Stainless Steel 316

Product Details : 3/8" x 3" Wedge Anchor - Stainless Steel 316

• Product Type: Wedge Anchor
• Drill Size: 3/8"
• Diameter: 3/8"
• Length: 3"
• Thread Length: 1-1/4"
• Load Capacity - Wall Mounted/Concrete: 489 kg
• Load Capacity - Ceiling Mounted/Concrete: 497 kg
• 2000 PSI Concrete -Pull Out (lbs): 1223
• 2000 PSI Concrete -Shear (lbs): 3238
• Important Information: As a safety factor, industry standards recommend using 25% of the ultimate load (Break Point). Ultimate load in 2000 PSI concrete.
• Material(s): Stainless Steel 316
