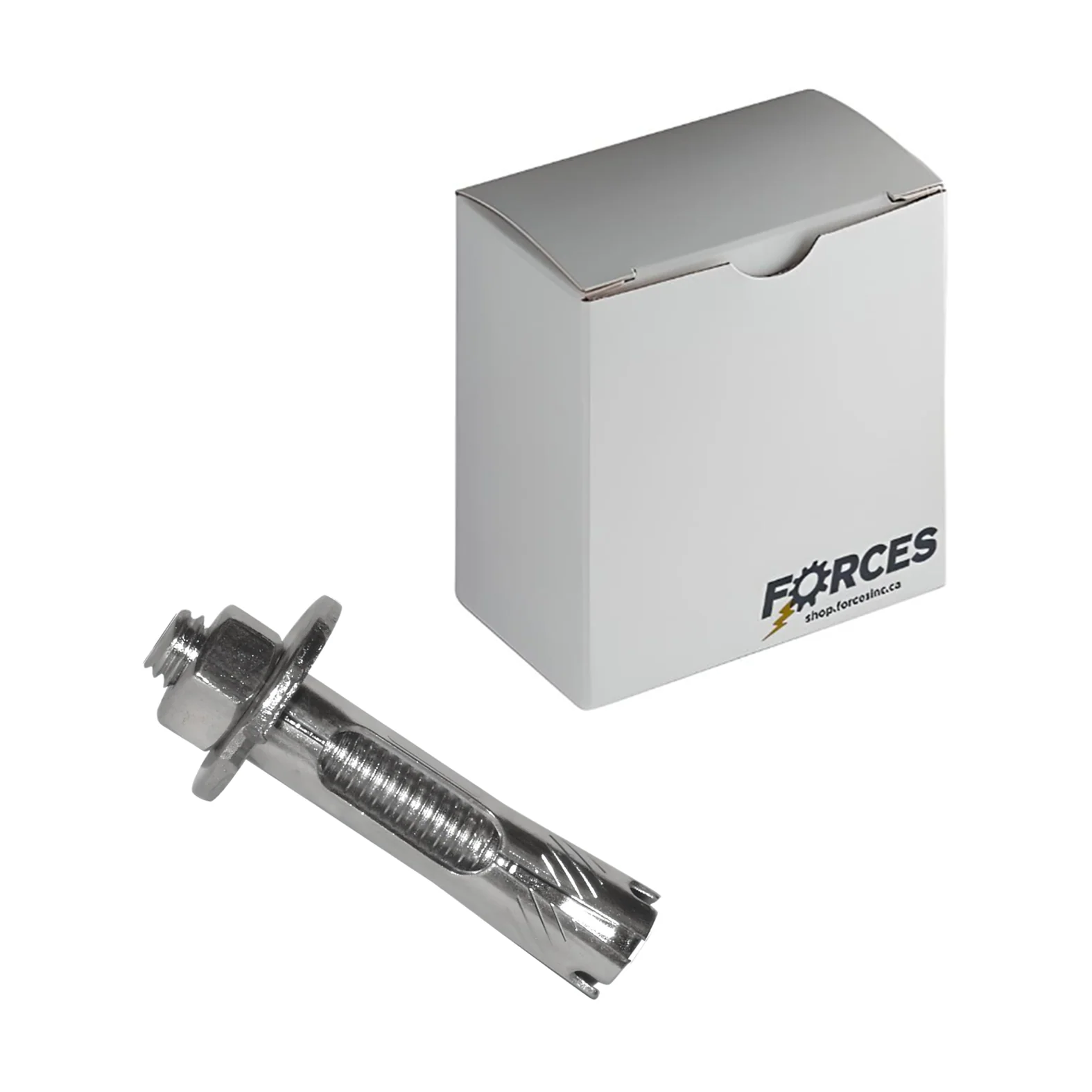

3/8" x 4" Sleeve Anchor - Zinc
Product Details : 3/8" x 4" Sleeve Anchor - Zinc
- Product Type: Sleeve Anchor
- Drill Size: 3/8"
- Diameter: 3/8"
- Bolt-Size: 5/16"
- Length: 4"
- Thread-Length: 2"
- Load Capacity - Wall Mounted/Concrete: 341 kg
- Load Capacity - Ceiling Mounted/Concrete: 273 kg
- 2000 PSI Concrete -Pull Out (lbs): 1406
- 2000 PSI Concrete -Shear (lbs): 3082
- Important Information: As a safety factor, industry standards recommend using 25% of the ultimate load (Break Point). Ultimate load in 2000 PSI concrete.
- Material(s): Zinc
For any information about products, please contact us.
*Photos for reference purposes only.
