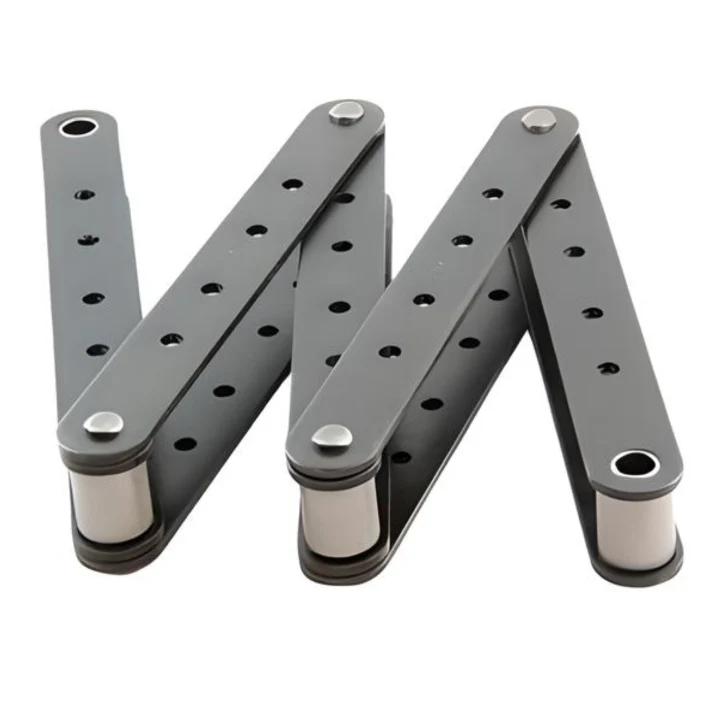

3939-B4 Conveyor Chain - 10ft

Product Details : 3939-B4 Conveyor Chain - 10ft

• Part No: CC3939B4
• Product Type: Conveyor Chain
• Chain Number: 3939-B4
• Length: 10ft
• No. Links in 10 feet: 15

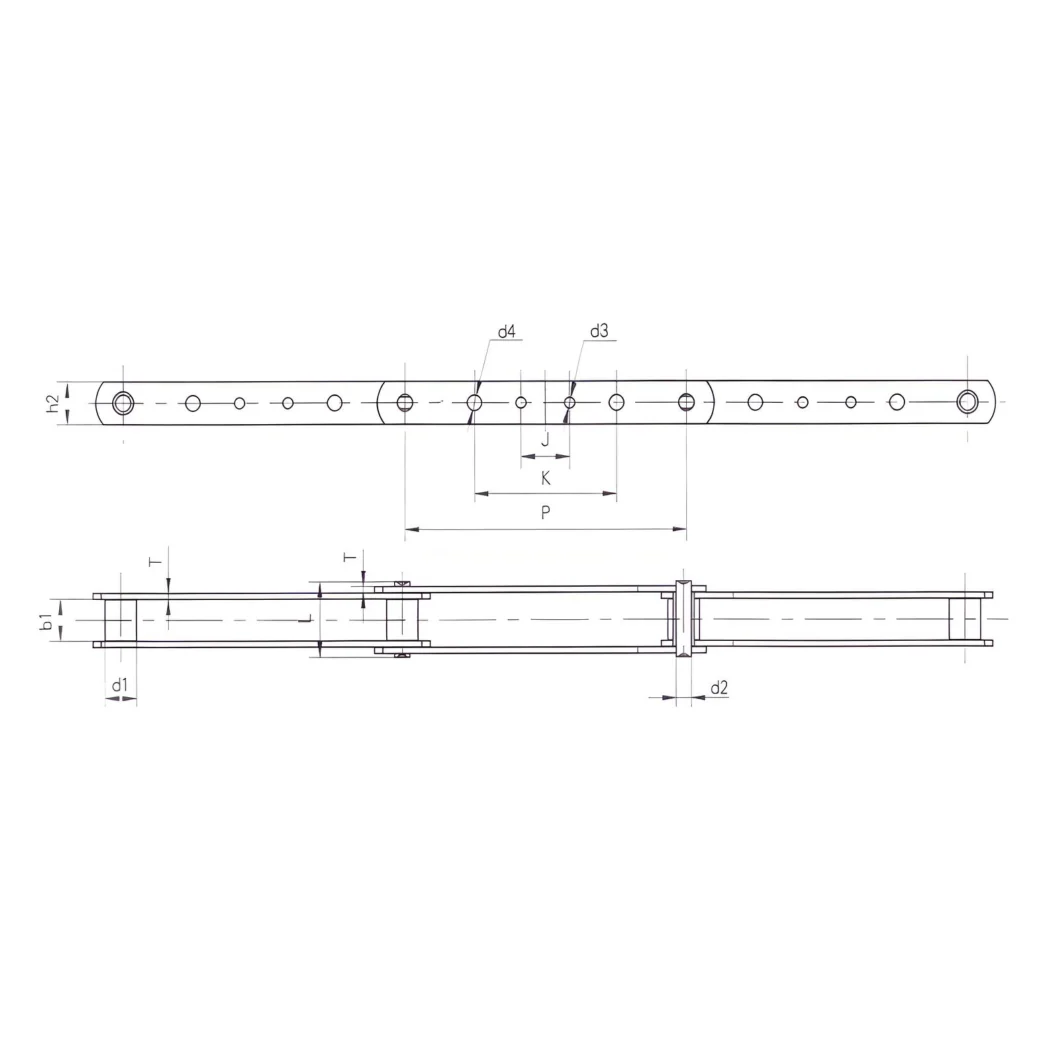

• Pitch (P): 8"
• Roller Dia. (d1): 0.9055"
• Inner Plates (b1): 1.0629"
• Pin Dimensions (d2): 0.437"
• Pin Dimensions (L): 1.9291"
• Plate Dimensions (h2): 1.125"
• Plate Dimensions (d3): 0.283"
• Plate Dimensions (d4): 0.283"
• Plate Dimensions (J): 1.500"
• Plate Dimensions (K): 4.000"
• Plate Dimensions (T): 0.1574"
• Average Ultimate Strength lbs.: 24000 lbs
• Material(s): Carbon Steel

For any information about products, please contact us.

*Photos for reference purposes only.
