5/16" Stat-O-Seal® (600 Series) - Nitrile/Steel

Product Details : 5/16" Stat-O-Seal® (600 Series) - Nitrile/Steel

• Part No: 600-001-5/16-1
• Product Category: Fastner Seal/Bonded Seals
• Product Type: Stat-O-Seal®
• Series: 600
• Material(s): Nitrile/Steel
• Material Code: NBR/Steel
• Temperature Range: -30°F to +225°F (-34°C to +107°C)
• System Of Measurement: Inch
• Fastener Size: 5/16"
• Thread Major Diameter: 0.312"
• Dimensions: 0.301" x 0.603" x 0.050"

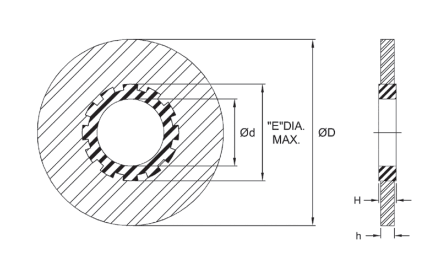

• Nominal I.D. (d): 0.301"
• Nominal O.D. (D): 0.603"
• Nominal Thickness (h): 0.050"
• Nominal Center Thickness (H): 0.072"
• E Diameter Max.: 0.488"
• Diametral Clearance: 1/64" to 1/32"
• Details:
  •Fastener seals are primarily used to seal bolts around the smooth area of the bolt shaft

For any information about products, please contact us.

*Photos for reference purposes only.
