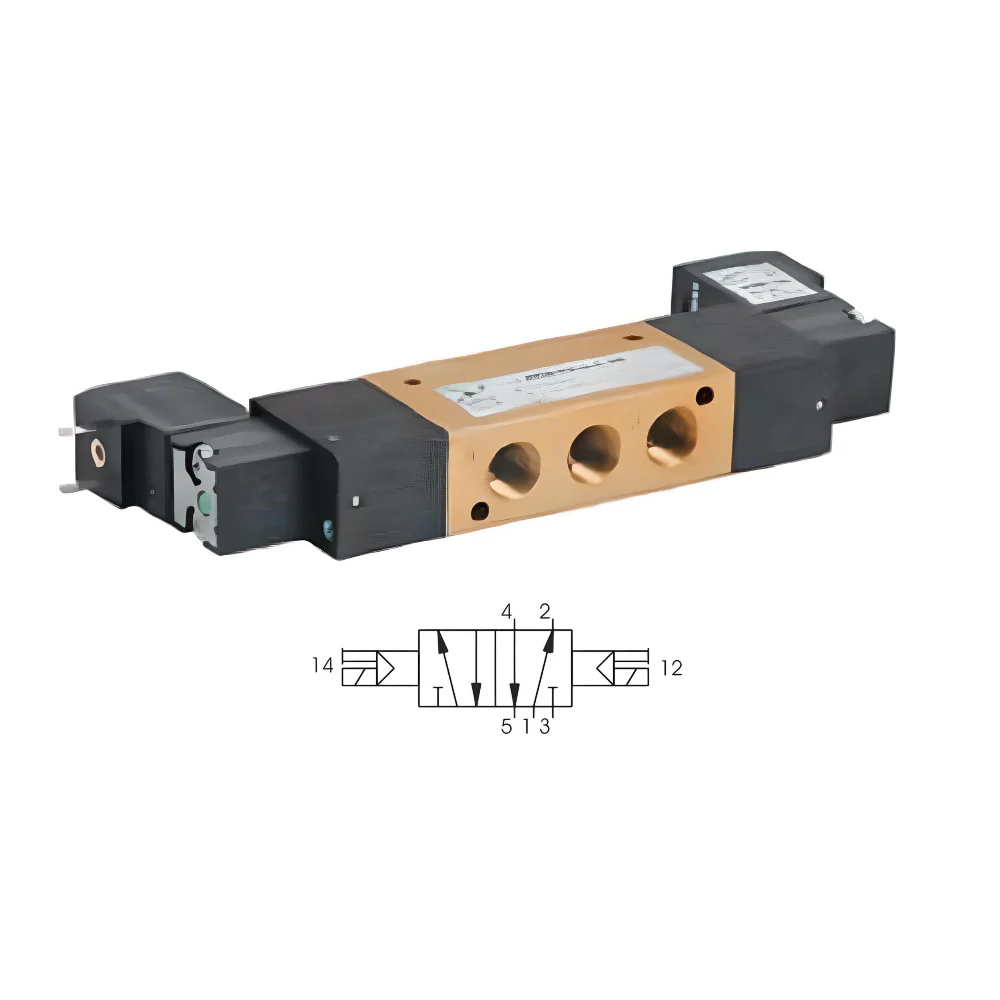

Compact Solenoid Valve G1/8", 5/2 Double Coil 24Vdc

Product Details : Compact Solenoid Valve G1/8", 5/2 Double Coil 24Vdc

• Part No: 808.52.0.0.02
• Product Type: Compact Solenoid Valve
• Series: 800
• Valve Code: 808
• Fluid: Filtered air
• Working Ports size: G1/8"
• Orifice Size (mm): 4.0
• Exhaust Port Size: G1/8"
• Valve Type: Spool Valve
• Actuation: Electric (Solenoid)
• Return Actuation: Electric (Solenoid)
• Actuation Type: Double Acting
• Valve Diagram: 5/2
• Voltage: 24Vdc
• Max Working Pressure: 10 bar
• Operating Temperature °C: -5°C +50°C
• Flow rate at 6 bar with Δp=1 (Nl/min): 520
• Body Material: Aluminum
• Operators: Aluminum
• Spools: Aluminum
• Seals: HNBR
• Pistons: Aluminum

For any information about products, please contact us.

*Photos for reference purposes only.
