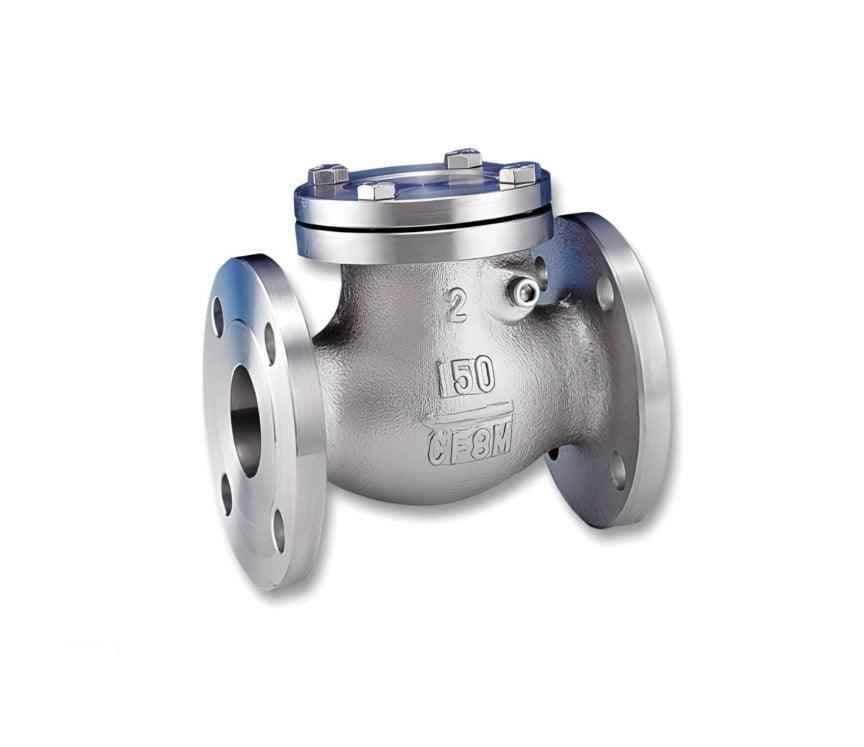

Flanged Swing Check Valve #150 Stainless Steel 316
Product Details : Flanged Swing Check Valve #150 Stainless Steel 316
-

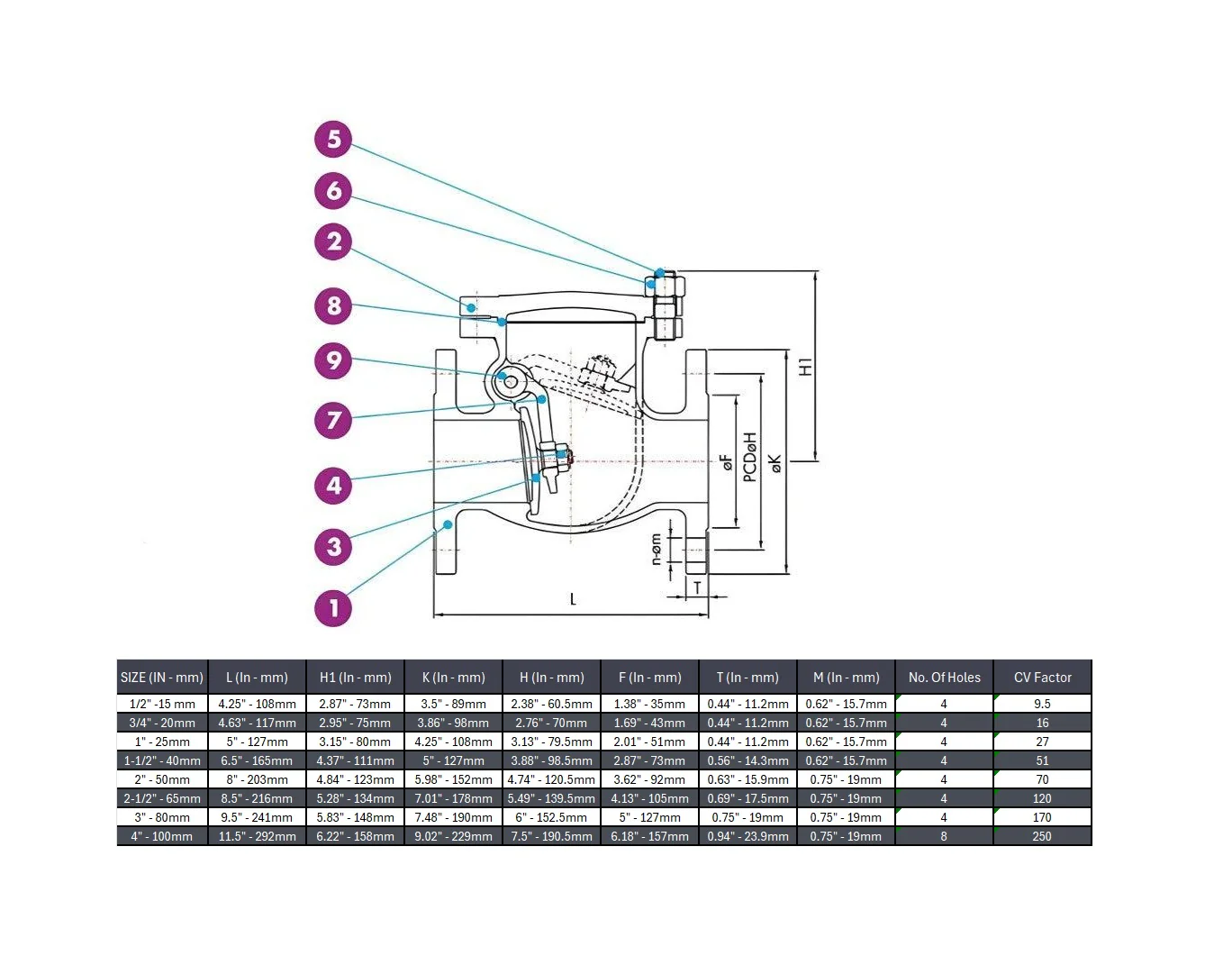

Specifications:
• Swing type
• Body: ASTM A351 Gr. CF8M
• Disc: ASTM A351 Gr. CF8M
• End Type: Flange end
• Face to Face: ANSI B16.10
• Flange Dimensions: ANSI B16.5 Class 150
• Wall thickness: ANSI B16.34
• Test standard: API 598 - BODY: ASTM A351 Gr.CF8M
- COVER: ASTM A351 Gr.CF8M
- DISC: ASTM A351 Gr.CF8M
- DISC NUT: ASTM A194 Gr. 8
- COVER BOLT: ASTM A193 Gr. B8
- COVER NUT: ASTM A194 Gr. 8
- ARM: ASTM A351Gr.CF8M
- GASKET: PTFE
- PLUG: SS316
For any information about products, please contact us.
*Photos for reference purposes only.
Select Size
Select WOG/Class
Select End Type
From $116.35
Original: $332.42
-65%Flanged Swing Check Valve #150 Stainless Steel 316—
$332.42
$116.35
Description
Product Details : Flanged Swing Check Valve #150 Stainless Steel 316
-
Specifications:
• Swing type
• Body: ASTM A351 Gr. CF8M
• Disc: ASTM A351 Gr. CF8M
• End Type: Flange end
• Face to Face: ANSI B16.10
• Flange Dimensions: ANSI B16.5 Class 150
• Wall thickness: ANSI B16.34
• Test standard: API 598 - BODY: ASTM A351 Gr.CF8M
- COVER: ASTM A351 Gr.CF8M
- DISC: ASTM A351 Gr.CF8M
- DISC NUT: ASTM A194 Gr. 8
- COVER BOLT: ASTM A193 Gr. B8
- COVER NUT: ASTM A194 Gr. 8
- ARM: ASTM A351Gr.CF8M
- GASKET: PTFE
- PLUG: SS316
For any information about products, please contact us.
*Photos for reference purposes only.
