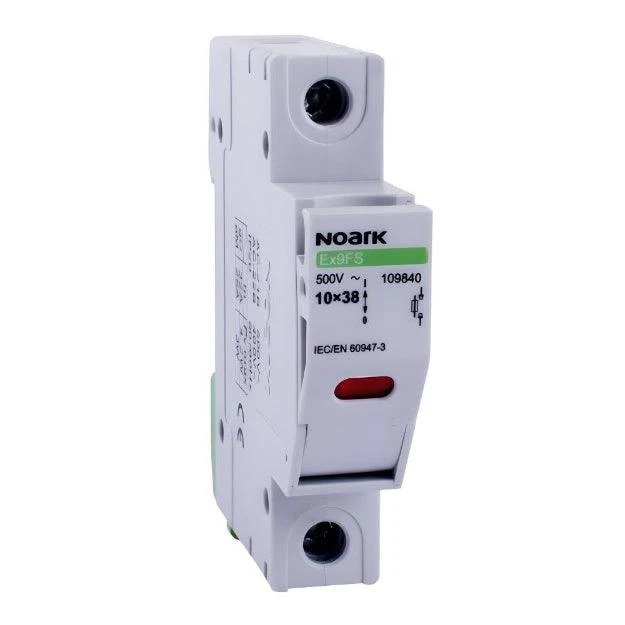

Fuse Holder 1P 30A Class CC Fuse W/ Indication Light | F30CC1L

• NOARK® Manual

Product Details : Fuse Holder 1P 30A Class CC Fuse W/ Indication Light | F30CC1L

• Part No: F30CC1L
• Product Type: Fuse Holder W/ Indication Light
• Brand: NOARK®
• Rated Current (Amps): Up to 30A
• Interrupting Capacity: 200kA
• Voltage (V): 600Vac/dc
• Fuse Type: Class CC
• No. Of Poles: 1
• Applicable Fuses: 10x38mm Class CC fuses (?30A)
• Indication Light: Yes
• Terminal Wire Range: Copper conductor, 18-6 AWG (0.75-10mm²) AWG
• Mounting: 35 mm DIN-Rail
• Limited Warranty: 5 Years
• Features:
  • Rated current up to 30A
  • The interrupting capacity of F30M series and F30CC series is up to 200kA while F30P is 50kA.
  • Available option for blown-fuse indicating light, which is convenient for quick inspection and identification
• Certifications:
  • F30CC: UL 4248-4 File no. E530645
  • UL Listed to UL4248-4 and CSA Standard C22.2 No. 4248

For any information about products, please contact us.

*Photos for reference purposes only.
