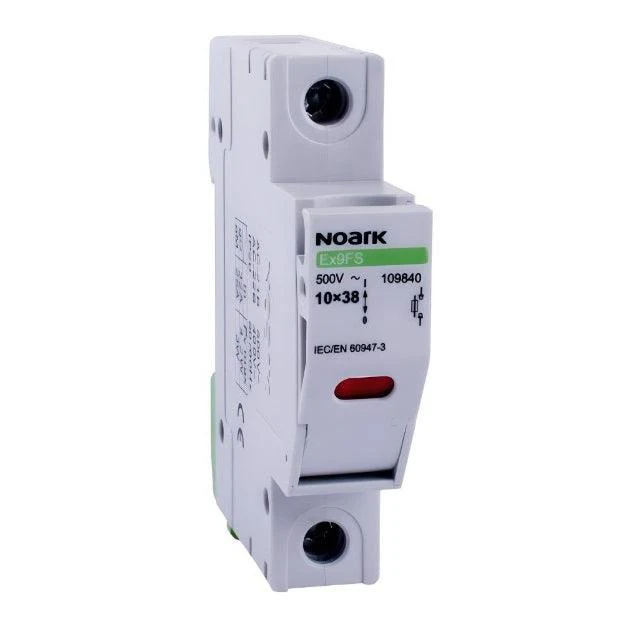

Fuse Holder 1P 30A PV (Photovoltaic) Fuse W/ Indication Light | F30P1L

• NOARK® Manual

Product Details : Fuse Holder 1P 30A PV (Photovoltaic) Fuse W/ Indication Light | F30P1L

• Part No: F30P1L
• Product Type: Fuse Holder W/ Indication Light
• Brand: NOARK®
• Rated Current (Amps): Up to 30A
• Interrupting Capacity: 50 kA
• Voltage (V): 1000Vdc
• Fuse Type: PV (Photovoltaic)
• No. Of Poles: 1
• Applicable Fuses: 10x38mm PV fuses (?30A)
• Indication Light: Yes
• Terminal Wire Range: Copper conductor, 18-6 AWG (0.75-10mm²) AWG
• Mounting: 35 mm DIN-Rail
• Limited Warranty: 5 Years
• Features:
  • Rated current up to 30A
  • The interrupting capacity of F30M series and F30CC series is up to 200kA while F30P is 50kA.
  • Available option for blown-fuse indicating light, which is convenient for quick inspection and identification
• Certifications:
  • F30P: UL4248-19 File no. E522691
  • UL Listed to UL4248-19 and CSA Standard C22.2 No.4248

For any information about products, please contact us.

*Photos for reference purposes only.
