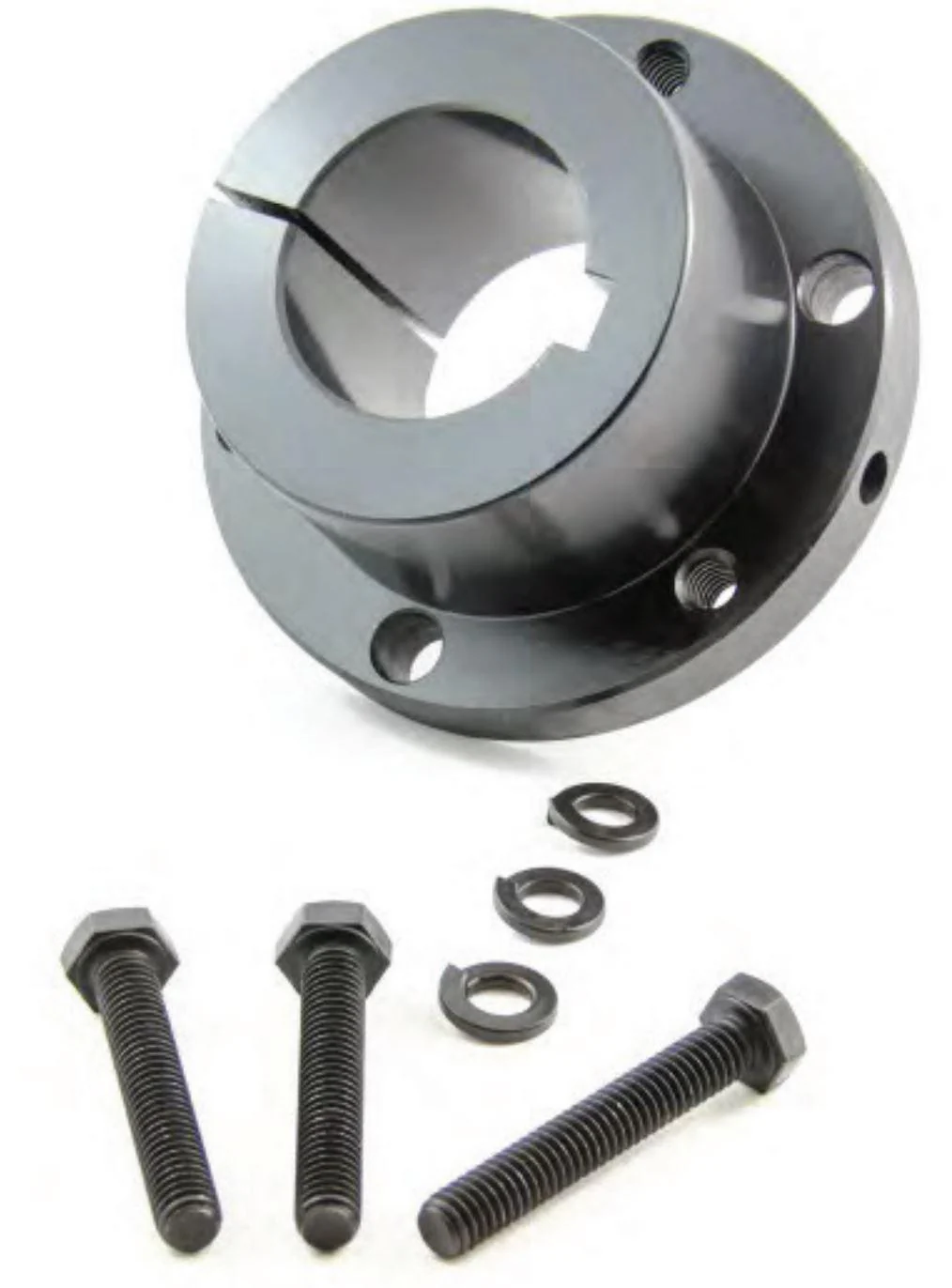

H-1-1/2 Split Taper Bushing, 1-1/2" Bore

H-1-1/2 Split Taper Bushing, 1-1/2" Bore

Details & Specifications

• Part No: QH1150
• PLI Bushing No.: H

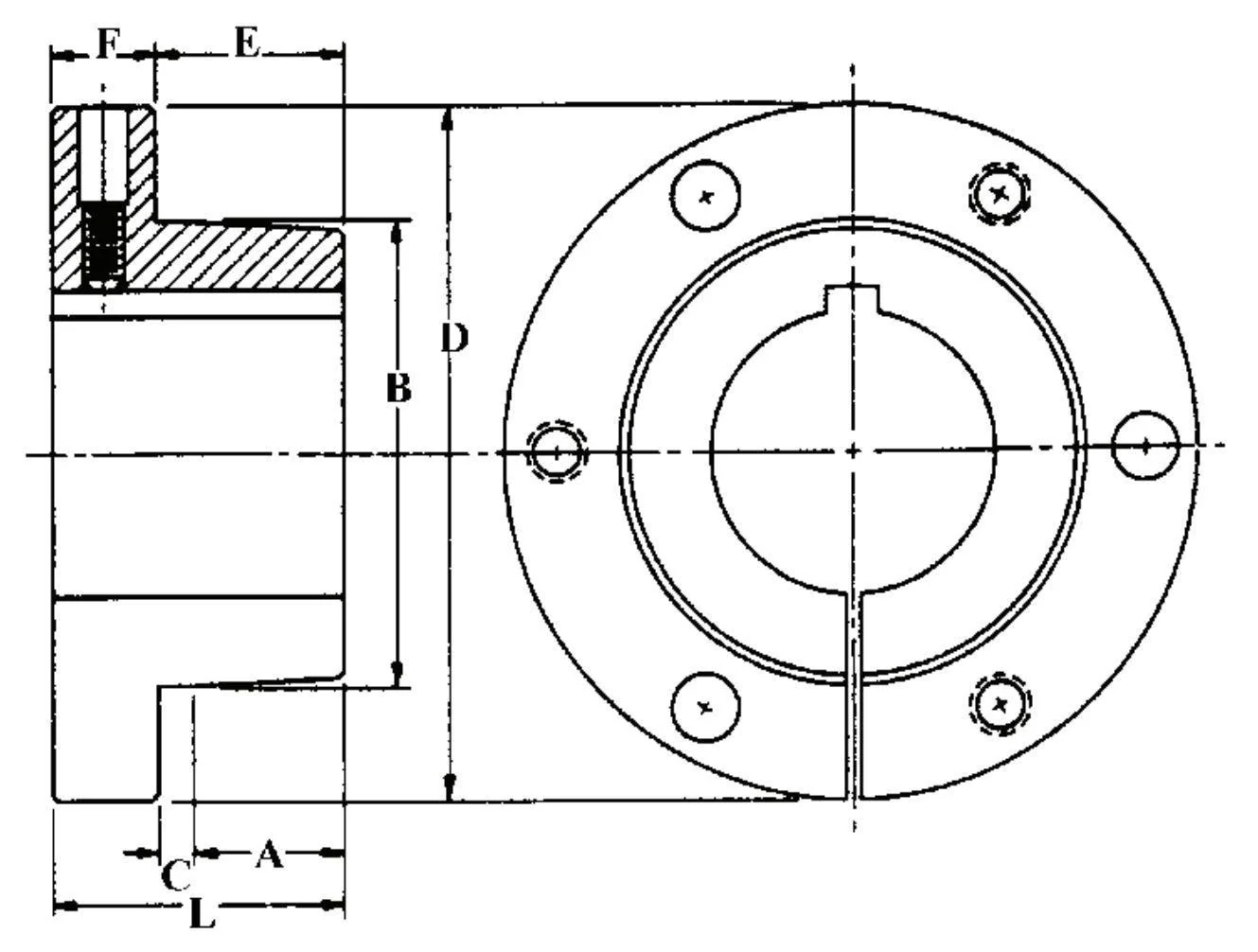

• Bore: 1.500"
• Dimensions L: 1.25"
• Dimensions U: 0.25"
• Dimensions T: 1"
• Dimensions D Large End: 1.625"
• Dimensions D Small End: 1.57"
• Dimensions H: 2.5"
• Dimensions V: 2"
• Dimensions X: 0.875"
• Dimensions Y: 0.188"
• Dimensions R: 0.125"
• Dimensions S: 0.188"
• Capscrews NO.: 2
• Capscrews SIZE (Inch): 1/4 x 3/4
• Average Weight Lbs.: 0,8



All bushings are either Steel, or Ductile Iron

For any information about products, please contact us.

*Photos for reference purposes only.
