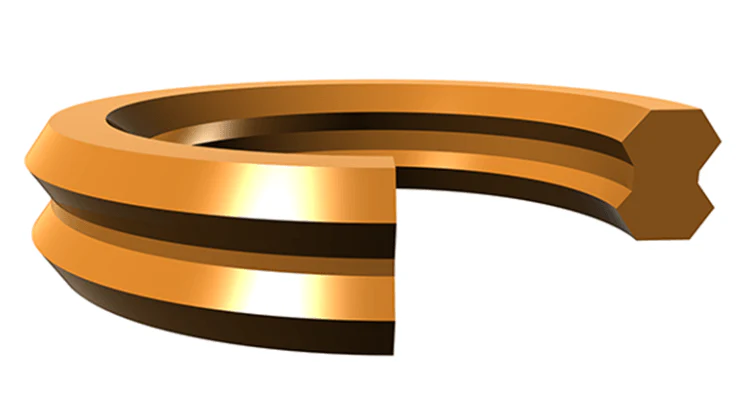

Head Seal 4.750" x 4.500" x 0.187" - Polyurethane

Product Details : Head Seal 4.750" x 4.500" x 0.187" - Polyurethane

• Part No: HS12-246/U92
• Product Category: O-Rings
• Product Type: Head Seal
• Material(s): Polyurethane
• Material Code: AU
• Durometer: 92A
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Pressure Range: ? 5000 PSI (? 345 Bar)
• System Of Measurement: Inch
• Replaces O-Ring: -246
• Bore Diameter: 4.750"
• Dimensions: 4.750" x 4.500" x 0.187"
• Nominal I.D. (d): 4.500"
• Nominal O.D. (D): 4.750"
• Nominal Height (H): 0.187"
• Cross-Section: 1/8"
• Details:
  •Head Seals are used in static applications as replacements to O-ring/Back-up assemblies
