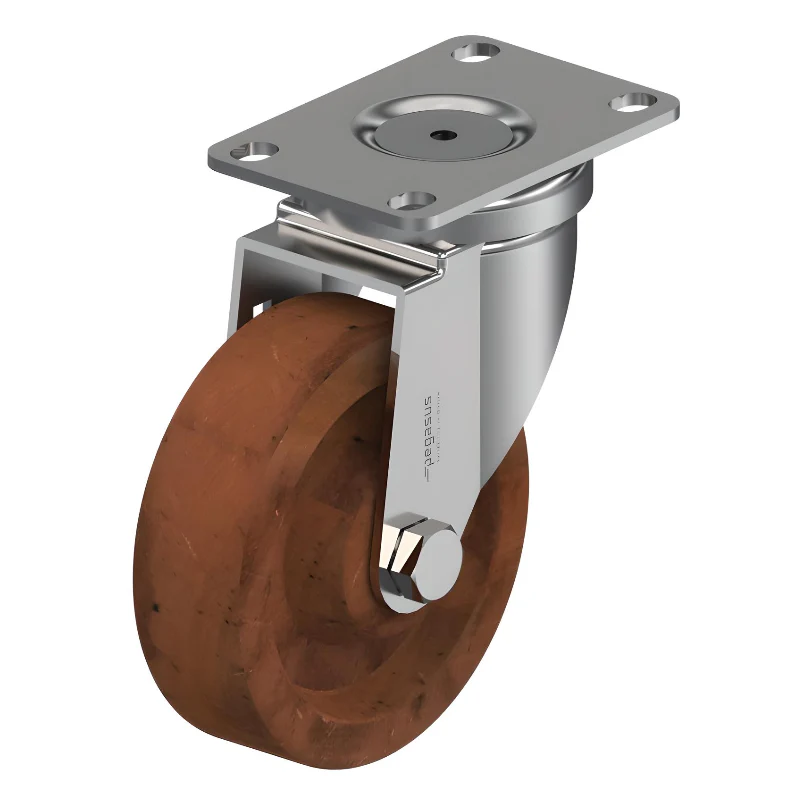

Heat Resistant Phenolic Red Caster 5" x 1-1/4" Swivel 275 lbs Plain Bore Bearing P12X Series

Product Details : Heat Resistant Phenolic Red Caster 5" x 1-1/4" Swivel 275 lbs Plain Bore Bearing P12X Series

• Product Type: Medium Light Duty Casters
• Series: P12X Series
• Wheel Material: Heat Resistant Phenolic Red
• Caster Type: Swivel
• Brake Options: No Brake
• Mount Type: Top Plate
• Plate Material: Stainless Steel
• Wheel Diameter: 5"
• Wheel Width: 1-1/4"
• Tread / Tire Material(s): Solid Red Heat Resistant Phenolic
• Wheel Core / Rim Material(s): Solid Red Heat Resistant Phenolic
• Bearing Type: Plain Bore Bearing
• Load Capacity (lbs): 275 lbs
• Total Height: 6-1/8"
• Swivel Lead: 1-5/16"
• Top Plate No.: 12
• Plate Size: 2-1/2" x 3-5/8"
• Bolt Hole Spacing: 1-3/4" x 2-13/16" to 3-1/16"
• Bolt Hole Size: 5/16"
• Where Used:
  • Baking carts
  • Autoclaves
  • Medical equipment
• Features:
  • Hardened stainless steel double ball raceways with Ø 1/2" kingpin
  • 304 stainless steel with polished finish for excellent rust and corrosion resistance
  • Stainless steel 3/8" axle and locknut
  • Delrin bearing wheels offer corrosion resistance and smooth operation in humid environments (economical plain bore HRP and HBP wheels)
  • Rig leg spacing: 1-9/16"
• Wheel Treads: Red phenolic wheels roll extremely well and will withstand intermittent heat up to 425 degrees
• Certified Quality Management System: ISO 9001
• Warranty: 3 Year
