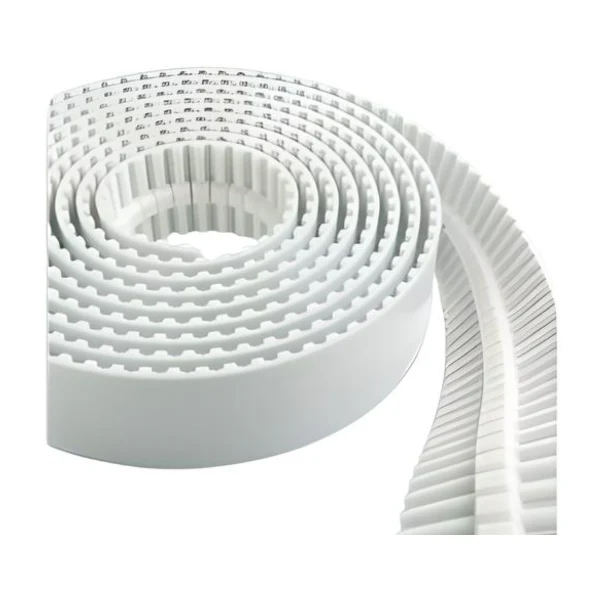

"HG" Open End Timing Belt 38.1mm Wide - Steel Cord | LHG150URS

Product Details : "HG" Open End Timing Belt 38.1mm Wide - Steel Cord | LHG150URS

• Part No: LHG150URS
• Product Type: Polyurethane Open End Timing Belt
• Length: Sold Per Foot (ft)
• Belt Profile: HG
• Belt Pitch: 13mm
• Belt Width: 38.1mm (1.50")
• Tooth Height: 4mm
• Belt Thickness: 8.3mm
• Tooth Cover: None
• Back Cover: None
• Max Traction Load (N) : 3675
• Breaking Strength (N): 14700
• Elongation at MTL (mm/m) : 4
• Standard Width Tolerance: +/- 0.5mm
• Standard Length Tolerance: +/- 0.8mm
• Material(s): White Polyurethane Thermoplastic 92 ShA
• Material Cord: Zinked Steel (S and Z torsion)

Belts offered in custom widths. For more information and pricing about these custom products please contact us.

For any information about products, please contact us.

*Photos for reference purposes only.
