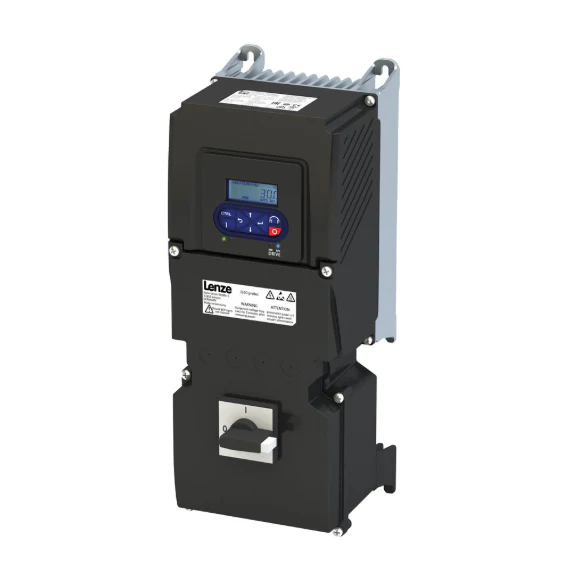

I55AP322G20701K03S | Lenze i550 protec VFD 30HP NEMA 4X (IP66) 3PH 480/600VAC Modbus RTU
Product Details : I55AP322G20701K03S | Lenze i550 protec VFD 30HP NEMA 4X (IP66) 3PH 480/600VAC Modbus RTU
- Product Type: Lenze Drive
- Manufacturer: Lenze
- Equivalent: ESV223N06TMD
- Series: i550 protec
- Drive Type: Series i550 protec Extension Box and Switch
- HP: 30
- Rated Power: 22 kW
- Input Voltage: 480/600VAC
- Input Phase: 3PH
- Mains Frequency: 60 Hz
- Output Voltage: 480/600VAC
- Output Phase: 3PH
- Output Current: 32A
- Output Frequency (Max): 599 Hz
- Degree of Protection (IP): IP66
- Degree of Protection (NEMA): NEMA 4X
- Enclosure: NEMA 4X (IP66)
- Application Areas For Drives: Standard applications for VFDs
- Protocol: Modbus RTU
- Product Extension: Keypad module, Standard I/O, Modbus RTU
- Fieldbus: Modbus RTU
- Fieldbus Integration: Permanently integrated
- Position Feedback Function: Without feedback
- Motor Feedback Function: Without feedback
-
Operation/Diagnostics:
• Wireless, e.g. with smartphone
• Wired, e.g. with PC
• Keypad - Wired Operation/Diagnostics, e.g. with a PC: Yes
- Wireless Operation/Diagnostics, e.g. with Smartphone: Possible, additional WLAN module required
- Encoder input: Yes, incremental encoder (HTL) via two digital inputs
- Encoder Input Integration: Permanently integrated
- Resolver Input: No
- Resolver Input Integration: Not available for this product series
- Safety Module: Without safety technology
- Brake Chopper: Permanently integrated
- Brake Resistor: External (accessories)
-
Memory Module:
• Drive supplied with one memory module each
• The drive cannot be operated without the memory module
• Saves software settings for the drive - 24 V Supply For Control Unit: Yes, as an alternative to mains supply
-
Control Unit Features:
• 24 V supply for control electronics
• Encoder input
• Relay - Mains Choke or Mains Filter Required: No
- Integrated RFI Filter: No
- DC Rated Voltage: 650/810VDC
- Number of Axes in The Drive: 1
- Disconnect Switch: Yes
- Extension Box: With
- Supply: Mains and/or DC
For any information about products, please contact us.
*Photos for reference purposes only.
