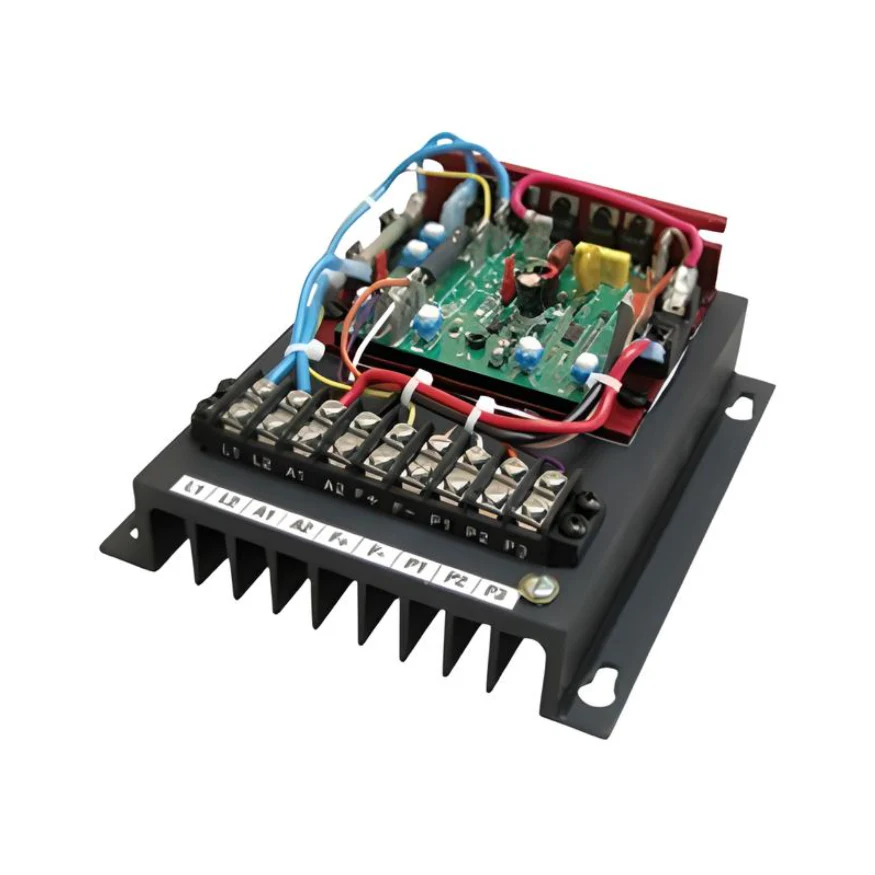

KBCC-225R | KB Chassis SCR DC Drive 3HP, 180 VDC (9924)

• KBCC Manual Available Here

• KBCC Data Sheet Available Here

Product Details : KBCC-225R | KB Chassis SCR DC Drive 3HP, 180 VDC (9924)

• Part No: 9924
• Product Type: KB Chassis SCR DC Drive
• Model No.: KBCC-225R
• HP: 3
• Input Phase: 1
• Input Voltage: 230 VAC
• Output Voltage: 180 VDC
• Output Amperage: 16
• Frequency (Hz): 50-60
• Enclosure NEMA: Chassis
• Enclosure IP: IP20
• Forward-Break-Reverse: Optional
• Features:
  • The KBCC-225R is 208/230 VAC
  • Designed for 180 VDC PM motors.
  • Control motors between 1/100-3.0 HP
  • Designed to provide anti-plug ''instant'' reverse, solid state dynamic braking and rapid cycling.
  • They include all the features of the KBCC with features of the KB APRM.
  • KB APRM eliminates contact arcing by allowing armature switching to take place only when voltage levels are near zero.
  • The controls are ruggedly constructed and contain a remote 5K speed pot.
  • Features include:
  - AC Line fuse and Armature Fuse holder
  - Auxiliary heat sink
  - Barrier terminal block
  • Specific functions that can be performed by the KBCC-R are Run-Brake, Forward-Brake-Reverse, Run-Stop and Forward-Reverse (instant reverse).
  • Also contains auto inhibit which provides a smooth, safe start during rapid switching of the AC line
  • Requires a plug-in horsepower to operate and includes and AC Line fuse and an armature holder
  • Dimensions: 9.00" x 6.25" x 4.50"
  • Line fuse: Required
  • Resistor and armature fuse: Required
