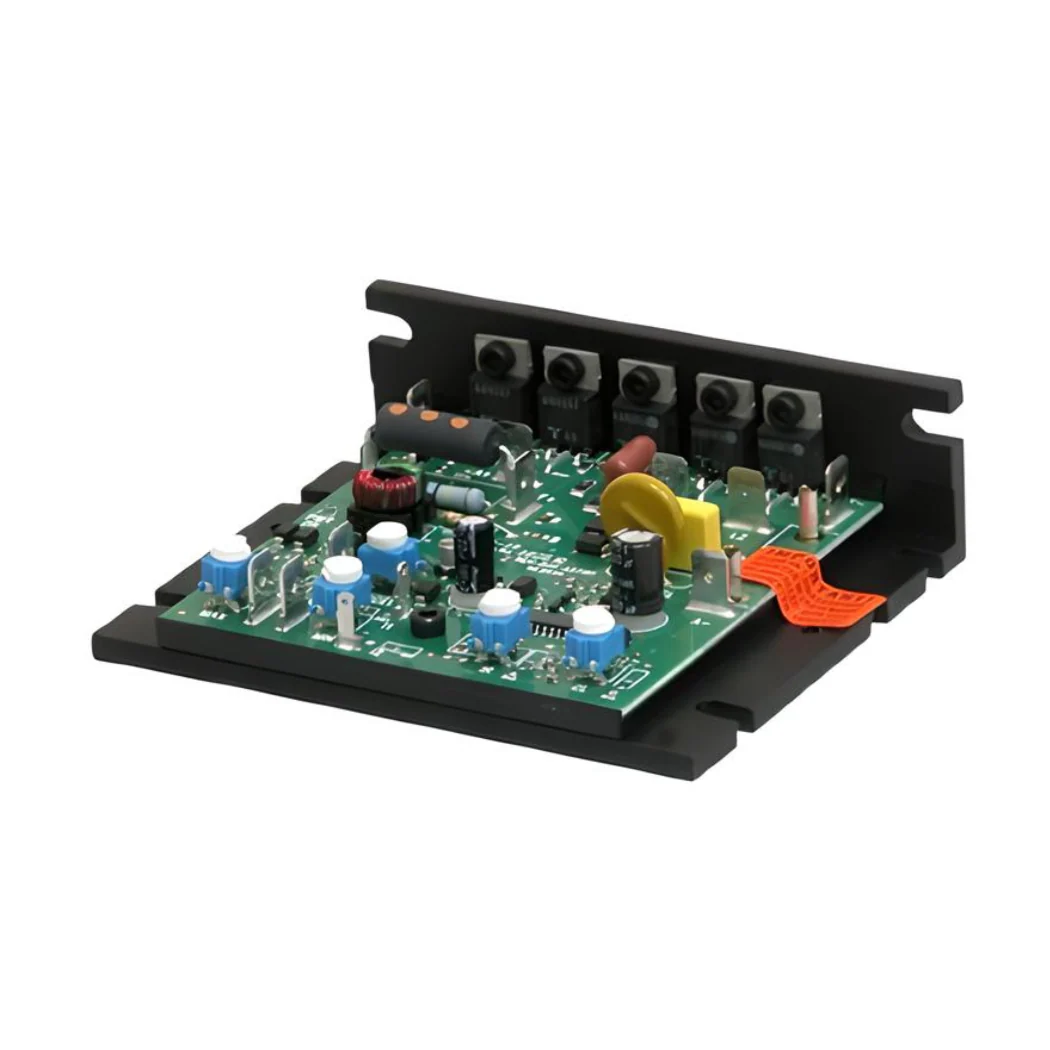

KBIC-120 | KB Chassis SCR DC Drive 0.5HP, 90 VDC (9429)

• KBIC Manual Available Here

• KBIC Data Sheet Available Here

Product Details : KBIC-120 | KB Chassis SCR DC Drive 0.5HP, 90 VDC (9429)

• Part No: 9429
• Product Type: KB Chassis SCR DC Drive
• Model No.: KBIC-120
• HP: 0.5
• Input Phase: 1
• Input Voltage: 115 VAC
• Output Voltage: 90 VDC
• Output Amperage: 6
• Frequency (Hz): 50-60
• Enclosure NEMA: Chassis
• Enclosure IP: IP20
• Forward-Break-Reverse: One Direction
• Features:
  • The KBIC-120 is a 115 VAC rated 9 Amps RMS @ 45C.
  • Designed for 90 VDC PM, Shunt and AC/DC motors
  • Control motors between 1/100-1/2 HP (1.0 HP w/aux. Heat sink) by inserting the proper Plug-in Horsepower Resistor
  • The Auxiliary Heatsink (optional) increases the rating of the basic unit.
  • Speed range is 50:1 with load regulation of 1%.
  • Features include:
  - Auto Inhibit
  - Voltage Following
  - MOV transient protection
  - 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL.
  • UL, CSA, CE (C-tick and CCC pending) Patented.
  • Dimensions: 4.30" x 3.60" x 1.30".
  • Line fuse: Required
  • Resistor and armature fuse: Required
