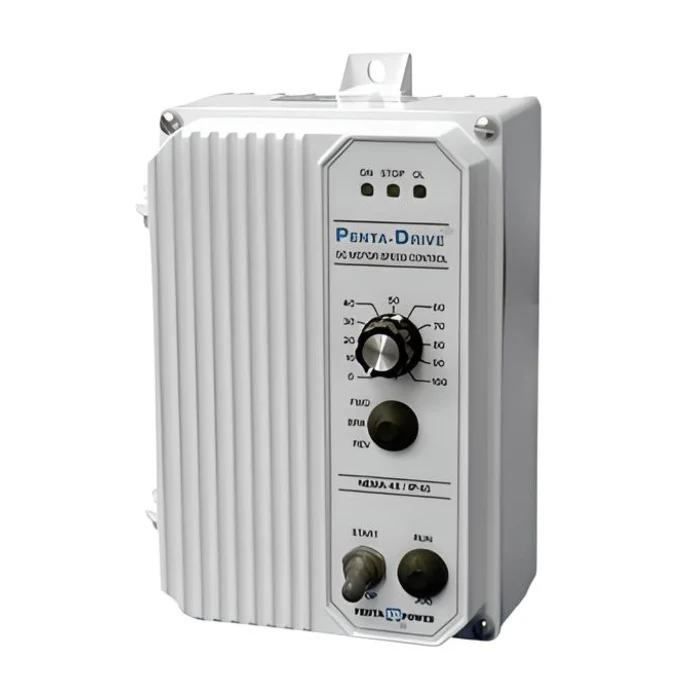

KBPC-225D | KB NEMA 4X SCR DC Drive White 3HP, 180 VDC (9392)

• KBPC Manual Available Here

• KBPC Data Sheet Available Here

Product Details : KBPC-225D | KB NEMA 4X SCR DC Drive White 3HP, 180 VDC (9392)

• Part No: 9392
• Product Type: KB NEMA 4X SCR DC Drive
• Model No.: KBPC-225D
• Color: White
• HP: 3
• Input Phase: 1
• Input Phase: 230 VAC
• Output Voltage: 180 VDC
• Output Amperage: 15
• Frequency (Hz): 50-60
• Enclosure NEMA: NEMA 4X
• Enclosure IP: IP65
• Forward-Break-Reverse: Optional
• Features:
  • The KBPC-225D is a 230 Vac, enclosed NEMA-4X (IP-65), adjustable speed DC Motor Speed and variable Torque control
  • Designed for environments where high humidity or watertight integrity is required
  • Short Circuit and Timed Current Limit (TCL) circuitry prevents motor burnout and demagnetization of PM motors
  • FDA approved white case. Approvals: UL, CSA, CE, C-tick
  • Selectable features are:
  - Motor voltage 90/180VDC
  - Motor current range 0.25 to 10 amps
  - Input signal 0-5/0-20VDC
  - Armature/tachometer feedback
  - Tachometer voltages 7,25,5 V/1000 rpm
  - Analog adjustments include: Min, Max, Accel, Decel, IR, CL, TCL and Jog
  • Standard features are:
  - Armature fusing
  - Electronic start-stop and LED indicators for "Power On," "Stop" and "Overload"
  • Dimensions: 5.90" x 9.50" x 5.00"
  • Resistor and armature fuse: Supplied

For any information about products, please contact us.

*Photos for reference purposes only.
