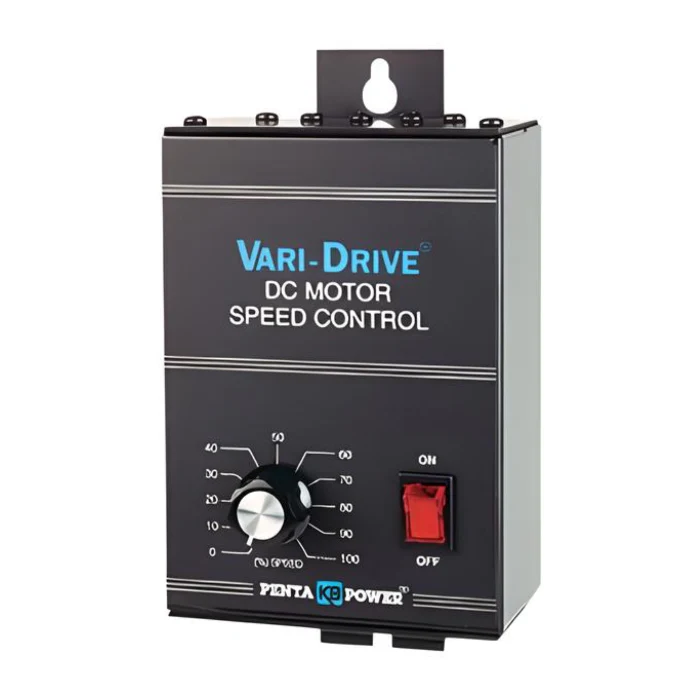

KBWM-120 | KB NEMA 1 SCR DC Drive 1/3HP, 90 VDC (9380)

• KBWM Manual Available Here

• KBWM Data Sheet Available Here

Product Details : KBWM-120 | KB NEMA 1 SCR DC Drive 1/3HP, 90 VDC (9380)

• Part No: 9380
• Product Type: KB NEMA 1 SCR DC Drive
• Model No.: KBWM-120
• HP: 1/3
• Input Phase: 1
• Input Voltage: 115 VAC
• Output Voltage: 90 VDC
• Output Amperage: 3.5
• Frequency (Hz): 50-60
• Enclosure NEMA: Nema 1
• Enclosure IP: IP50
• Forward-Break-Reverse: One Direction
• Features:
  • The Vari-Drives are equipped with the ultimate KBMM™ speed control module
  • They are specifically designed for fractional horsepower permanent magnet (PM) DC motors
  • NEMA-1, 115 Vac, Thru 0.33 HP, 0-90 VDC
  • Internal trimpots for Min, Max, IR, CL, Accel and Decel can be used to fine-tune the KBWM™ for specific applications
  • Motor failure due to demagnetization is eliminated by the patented ultra-fast Direct-Fed™ current limit circuit
  • Internal CL LED indicator that lights when the motor is overloaded
  • Dimensions: 3.70" x 6.80" x 3.00"
  • Line fuse: Required
  • Resistor and armature fuse: Required
