"L" Open End Timing Belt 12.7mm Wide - Kevlar Cord | LL050URKFDA

Product Details : "L" Open End Timing Belt 12.7mm Wide - Kevlar Cord | LL050URKFDA

• Part No: LL050URKFDA
• Product Type: Polyurethane Open End Timing Belt
• Length: Sold Per Foot (ft)
• Belt Profile: L
• Belt Pitch: 9.525mm
• Belt Width: 12.7mm (0.50")
• Tooth Height: 1.9mm
• Belt Thickness: 3.6mm
• Tooth Cover: Transparent FDA compound
• Back Cover: Transparent FDA compound
• Max Traction Load (N) : 985
• Breaking Strength (N): 3955
• Elongation at MTL (mm/m) : 8
• Standard Width Tolerance: +/- 0.5mm
• Standard Length Tolerance: +/- 0.8mm
• Standard Thickness Tolerance: +/- 0.3mm
• ISO: ISO 5296-1
• Material(s): White Polyurethane Thermoplastic 92 ShA
• Material Cord: Kevlar
• Details: • FDA Approved

Belts offered with AVAFC coating (60/70/85 ShA) and in custom widths. For more information and pricing about these custom products please contact us.

For any information about products, please contact us.

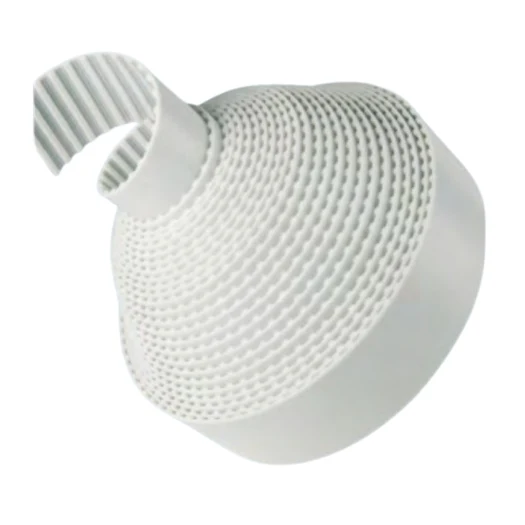

*Photos for reference purposes only.
