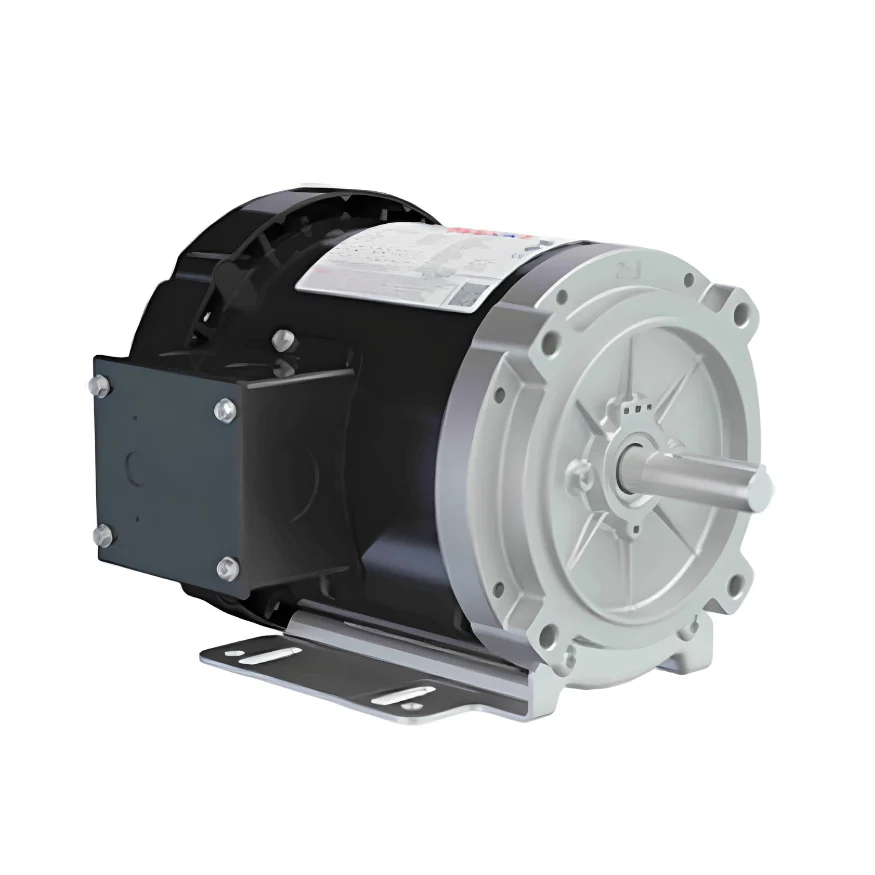

Leeson FX01BK002 | FLEX-IN-1™ General Purpose Motor 1HP, 3600RPM, 208-230/460V, Frame 56C, TEFC

• Dimension Print Available Here

Product Details : Leeson FX01BK002 | FLEX-IN-1™ General Purpose Motor 1HP, 3600RPM, 208-230/460V, Frame 56C, TEFC

• Part No: FX01BK002
• Product Type: FLEX-IN-1™ General Purpose Motor
• Brand: Leeson/Marathon
• Frame: 56C
• Enclosure: TEFC
• Horsepower (HP): 1
• Poles: 2
• RPM: 2500 to 3600
• Voltage: 208-230/460V
• Phase: 3
• Number Of Speeds: 1
• Frequency (Hz): 50-60
• Amps: 3.3/1.5
• Features:
  • One FLEX-IN-1™ motor replaces 18 general purpose motors
  • The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
  • Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
  • Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
  • Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
  • *** Kits sold separately. Light assembly required.
