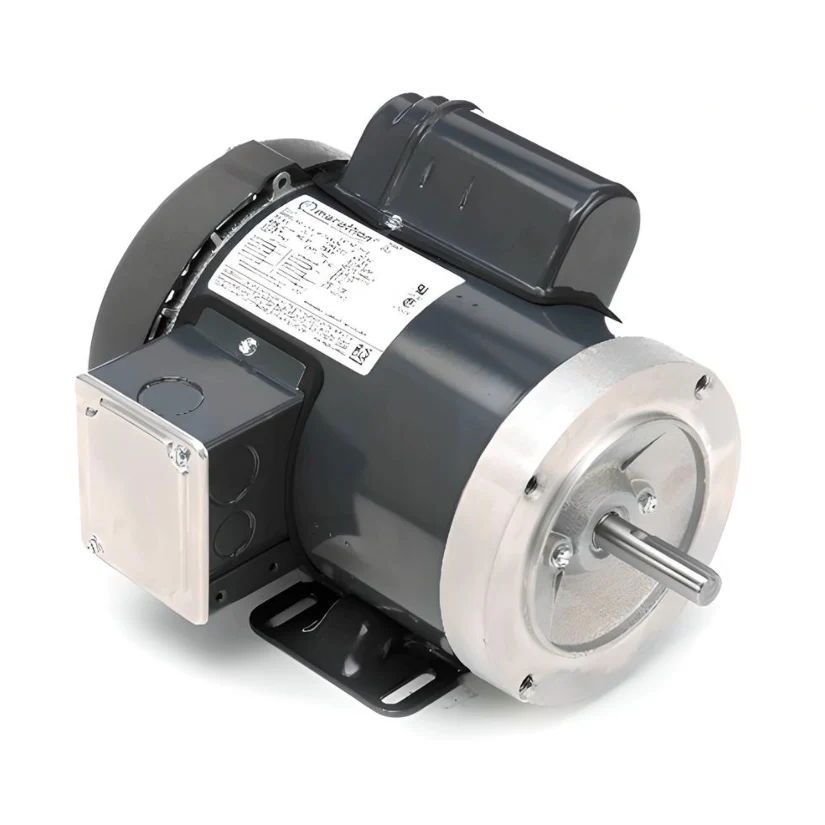

Leeson G571 | General Purpose Motor 1/2HP, 1800RPM, 115/208-230V, Frame 56C, TEFC

• Dimension Print Available Here

Product Details : Leeson G571 | General Purpose Motor 1/2HP, 1800RPM, 115/208-230V, Frame 56C, TEFC

• Part No: G571
• Product Type: General Purpose Motor
• Brand: Leeson/Marathon
• Frame: 56C
• Enclosure: TEFC
• Horsepower (HP): 1/2
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 8.8/4.4-4.2
• Features:
  • General Purpose, Single phase motors
  • Totally enclosed, 4 in 1 motors
  • Double sealed ball bearings, mechanically locked on shaft end
  • Heavy gauge steel constructions
  • Bolt-on, removable rigid base
  • Suitable for horizontal or vertical mounting
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency, as noted
  • 1.15 Service factor (except as noted)
  • Will accept brake kits, see accessory section
  • Will accept drip cover kits, see accessories section
  • UL recognized and CSA certified
  • C-Face footed (removable base)
  • Model 056C17F5321
