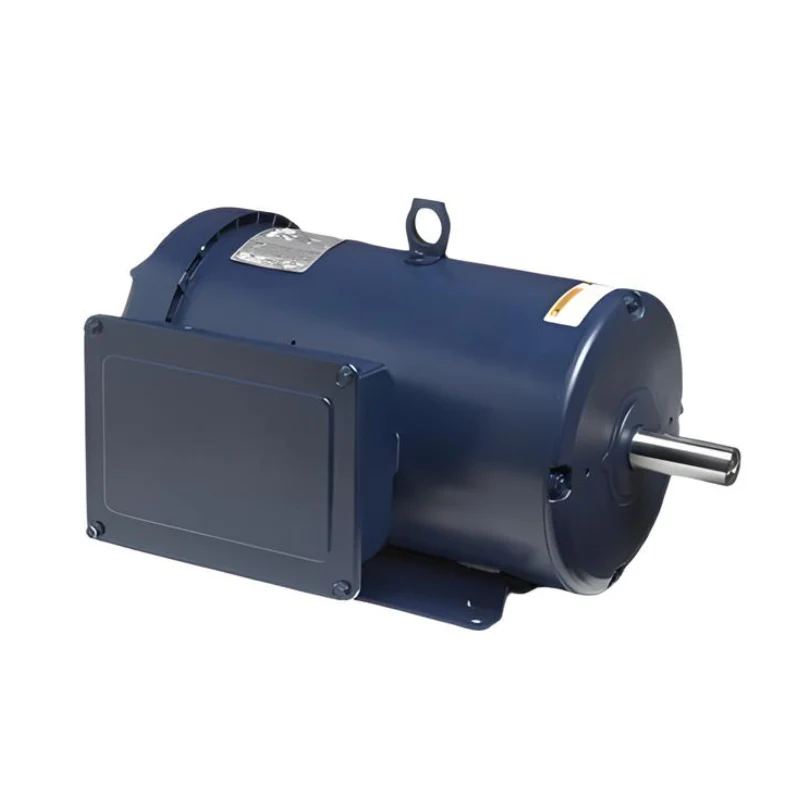

Leeson I224 | General Purpose Motor 7.5HP, 3600RPM, 208-230V, Frame 213T, TEFC

• Dimension Print Available Here

Product Details : Leeson I224 | General Purpose Motor 7.5HP, 3600RPM, 208-230V, Frame 213T, TEFC

• Part No: I224
• Product Type: General Purpose Motor
• Brand: Leeson/Marathon
• Frame: 213T
• Enclosure: TEFC
• Horsepower (HP): 7.5
• Poles: 2
• RPM: 2500 to 3600
• Voltage: 208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 36.0-32.0
• Features:
  • General Purpose, Single phase motors
  • Totally enclosed motors
  • Ball bearings
  • Heavy gauge steel constructions
  • Economical split phase or capacitor start designs, as noted
  • UL recognized and CSA certified
  • Rigid base
  • Model 213TBFW7001

For any information about products, please contact us.

*Photos for reference purposes only.
