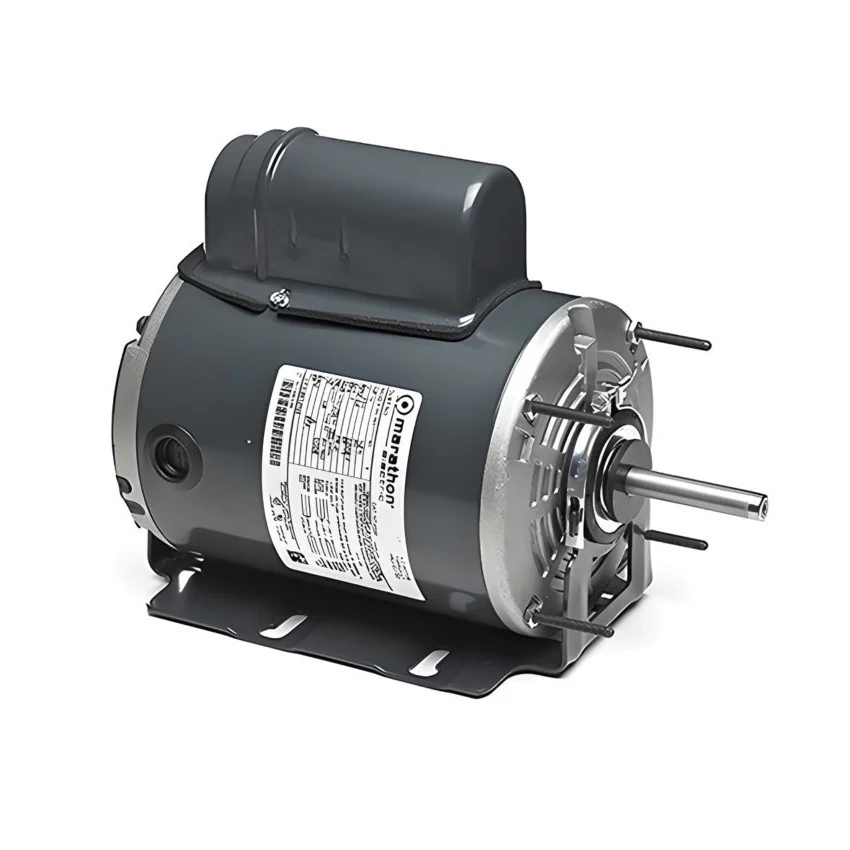

Leeson X025 | Farm Duty Motor 1/3HP, 1800RPM, 115/208-230V, Frame 48Z, TEAO

• Dimension Print Available Here

Product Details : Leeson X025 | Farm Duty Motor 1/3HP, 1800RPM, 115/208-230V, Frame 48Z, TEAO

• Part No: X025
• Product Type: Farm Duty Motor
• Brand: Leeson/Marathon
• Frame: 48Z
• Enclosure: TEAO
• Horsepower (HP): 1/3
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 4.2/2.1
• Features:
  • FARM DUTY, PSC MOTORS
  • TEAO, RESILIENT BASE - THRU BOLT
  • Ball bearings
  • Continuous duty
  • Extended thru-bolts
  • Automatic reset thermal protector
  • Fully gasketed
  • 48/56 Frame mounting holes
  • 1/2” dia. x 2-1/2” long shaft with two flats, 90º apart
  • UL recognized and CSA certified
  • Model 048A17T2003
  • APPLICATIONS: Designed for demanding agricultural fan applications such as poultry houses and barn exhaust fans. Must be mounted within the airstream for proper cooling. Variable speed capabilities when used with a single phase speed control unit – NOT supplied. Super variable speed motors, catalog X030, X031, and X032, are designed for lower temperature rise throughout a greater speed range.

For any information about products, please contact us.

*Photos for reference purposes only.
