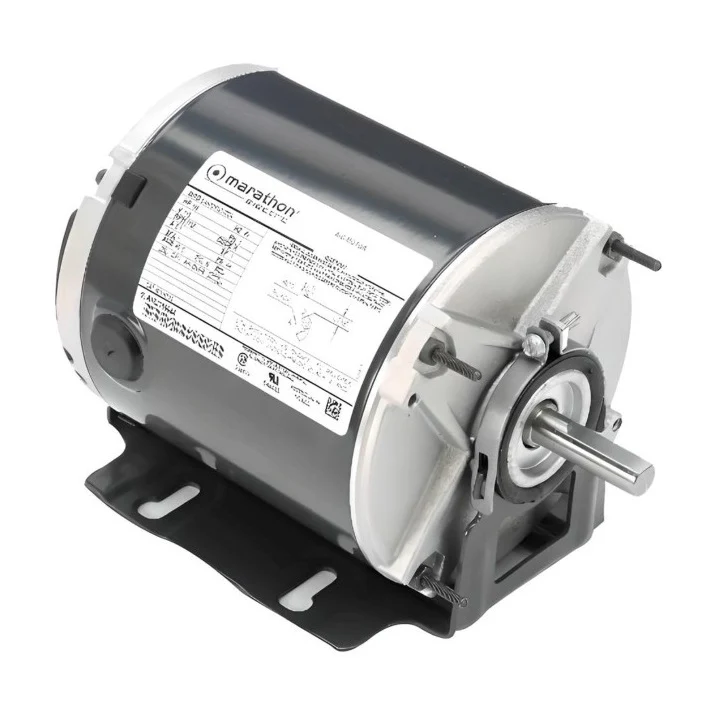

Leeson X1904 | Farm Duty Motor 1/3HP, 1800RPM, 115V, Frame 48Z, TENV

• Dimension Print Available Here

Product Details : Leeson X1904 | Farm Duty Motor 1/3HP, 1800RPM, 115V, Frame 48Z, TENV

• Part No: X1904
• Product Type: Farm Duty Motor
• Brand: Leeson/Marathon
• Frame: 48Z
• Enclosure: TENV
• Horsepower (HP): 1/3
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 115V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 6.2
• Features:
  • FARM DUTY / AGRICULTURAL MOTORS
  • SINGLE PHASE, TEAO, RESILIENT BASE-THRU BOLT MOTORS
  • Split phase and PSC, as noted
  • Ball bearings
  • Extended thru-bolts on X1903, X1904, P250, and P251
  • 48Z frame has 1/2” dia. x 2-1/2” long shaft with two flats
  • 56Z frame has 1/2” dia. x 1-7/8” long with 1-5/8” flat
  • 48Y & 48YZ have 48/56 fr. mounting holes
  • 1.0 service factor (except as noted)
  • Thermal protection, as noted
  • Fully gasketed
  • Model 5KH33JNA500S
