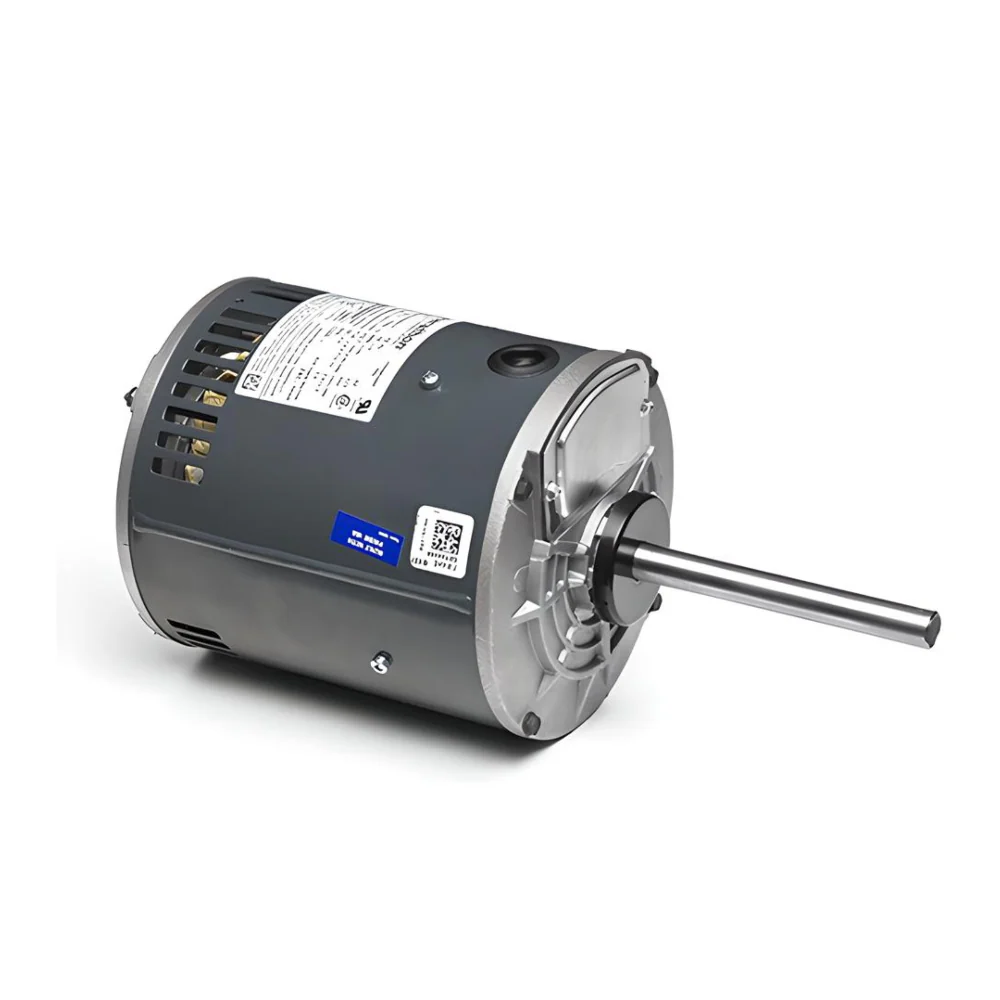

Leeson X522 | HVAC Motor 1HP, 1200RPM, 575V, Frame 56Y, OAO

• Dimension Print Available Here

Product Details : Leeson X522 | HVAC Motor 1HP, 1200RPM, 575V, Frame 56Y, OAO

• Part No: X522
• Product Type: HVAC Motor
• Category: Squirrel Cage Induction Run
• Brand: Leeson/Marathon
• Frame: 56Y
• Enclosure: OAO
• Horsepower (HP): 1
• Poles: 6
• RPM: 950 to 1200
• Voltage: 575V
• Phase: 3
• Number Of Speeds: 1
• Frequency (Hz): 50-60
• Amps: 1.7
• Features:
  • Condenser Fan/Heat Pump, Three Phase Motors
  • Open Air Over, Belly Band/Resilient Ring Motors
  • 70°C ambient (except as noted)
  • Enclosed shaft end bracket, vented frame
  • Automatic reset thermal protector
  • Nameplate 60/50 hertz 190/380 volts, at next lower HP (except as noted)
  • Double sealed ball bearings
  • 5/8” Dia. x 5” long shaft with flat and keyway
  • Ball bearings
  • Threaded lead exit
  • Patented VCD™ - Voltage Change Device
  • 4 locating screws 90 degrees apart, 3.33” from outer edge of shaft slinger
  • Hubs on both ends will accept resilient base kits, see accessories section (except X524 and X526 - horizontal only)
  • UL recognized and CSA certified
  • External shaft slinger on all, internal slinger on 5K models
  • Model 056T11O5308
