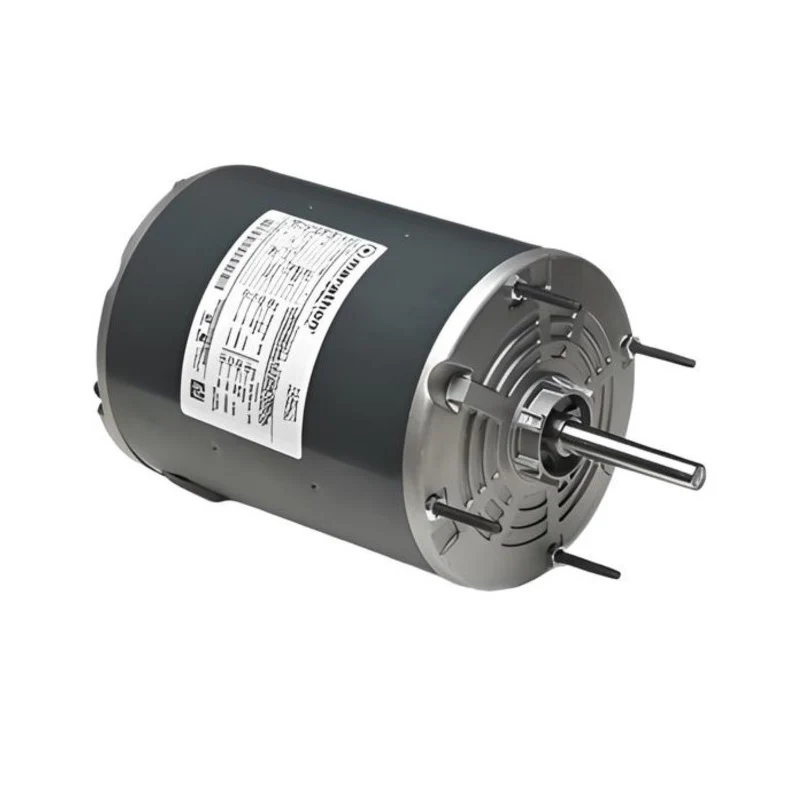

Leeson X911 | Farm Duty Motor 1/3HP, 1800RPM, 115V, Frame 48Z, TEAO

• Dimension Print Available Here

Product Details : Leeson X911 | Farm Duty Motor 1/3HP, 1800RPM, 115V, Frame 48Z, TEAO

• Part No: X911
• Product Type: Farm Duty Motor
• Brand: Leeson/Marathon
• Frame: 48Z
• Enclosure: TEAO
• Horsepower (HP): 1/3
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 115V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 5.3
• Features:
  • FARM DUTY/AGRICULTURAL MOTORS
  • SINGLE PHASE, TEAO, DIRECT DRIVE-THRU BOLT MOTORS
  • Economical split phase design
  • X909 has 1/2” diameter x 1.5” shaft with flat
  • X910 and X911 have 1/2” dia. X2-1/2” long shaft with two flats, 90 degrees apart
  • Thermal protection, as noted
  • Ball bearings
  • Model 048S17T365
