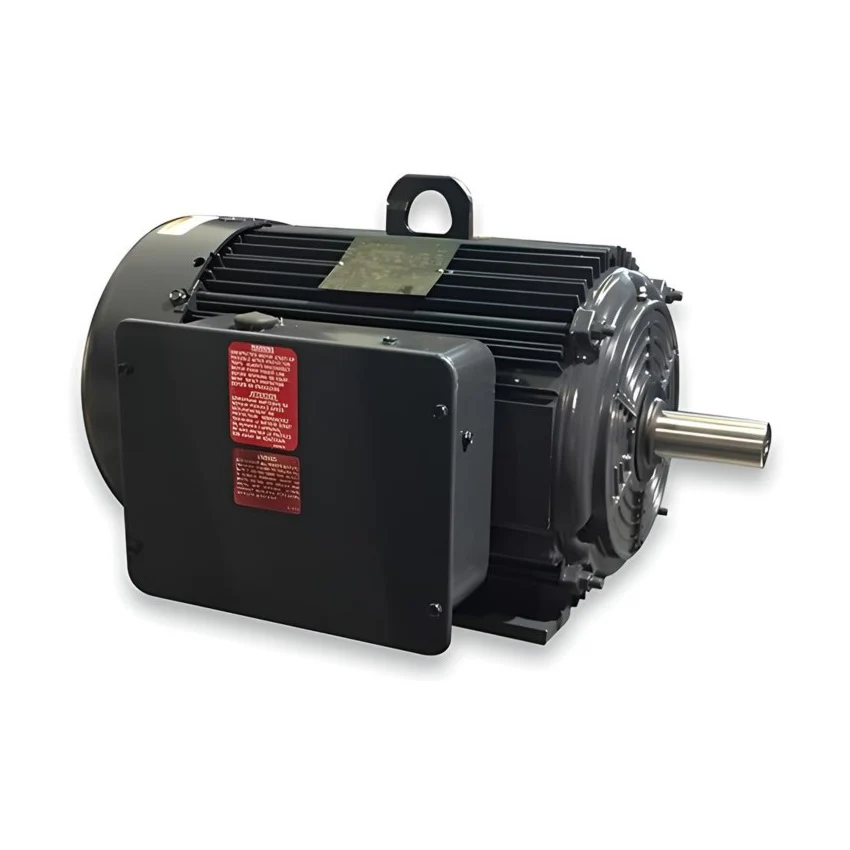

Leeson Z116-OLD | Farm Duty Motor 10HP, 1800RPM, 208-230V, Frame 215T, TEFC

• Dimension Print Available Here

Product Details : Leeson Z116-OLD | Farm Duty Motor 10HP, 1800RPM, 208-230V, Frame 215T, TEFC

• Part No: Z116-OLD
• Product Type: Farm Duty Motor
• Brand: Leeson/Marathon
• Frame: 215T
• Enclosure: TEFC
• Horsepower (HP): 10
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 40
• Features:
  • FARM DUTY / AGRICULTURE, EXTRA-HIGH TORQUE CHORE MOTOR
  • SINGLE PHASE, TEFC, RIGID BASE MOTORS
  • Class F insulation
  • 1.15 Service factor (except as noted)
  • Ball bearings
  • 300% and greater starting torque for hard-to-start applications
  • Totally enclosed and fully gasketed for dirty environments
  • 213/215TZ models have 1-1/8” shaft, 182TZ model has 7/8” shaft
  • Manual reset thermal protector
  • Condensate drains
  • Shaft slinger
  • UL recognized and CSA certified
  • Model 215TBFL9037

For any information about products, please contact us.

*Photos for reference purposes only.
