Max Motion IJA2100L-6-35 | IEC Motor 2HP, 1200RPM, 333/575V, Frame 100L, TEFC

Product Details : Max Motion IJA2100L-6-35 | IEC Motor 2HP, 1200RPM, 333/575V, Frame 100L, TEFC

• Part No: IJA2100L-6-35
• Product Type: IEC Motor
• Brand: Max Motion
• Frame: 100L
• Horsepower (HP): 2
• RPM: 6 pôles-950 to 1200
• Voltage: 333/575 (3 PH)
• F.L. Amps: 4.01/2.32
• KW: 1.49
• Frequency (Hz): 50/60 Hz
• Phase: 3
• Enclosure: TEFC
• Material(s): Aluminum
• Details:
  • Inverter Duty Magnet Wire
  • Meets or exceeds MG1 Part 31.4.4.2
  • Class H Insulation, with B Temperature Rise
  • At 60Hz : 333/575v
  • IP55 Inversion Protection
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque
  • 1.15 Service Factor
  • Rotatable / Removable Base 56-160
  • SKF High Temp bearings
  • 56-112 Frames come with Seal / lubricated Bearings
  • Aluminum Construction
  • IEC Design N, with NEMA B Torque characteristics
  • Terminal Blocks, Stud connection
  • B14 and B5 Flanges plus specialty flanges readily available
  • CE, cUL, cRUus Approval - Suitable for export to over 28 countries
  • Industry leading Three Years Warranty
  SPECIAL FEATURE:
  • Custom capabilities for unique voltage windings, 2 speeds, USDA wash-down, special shafts & flanges with typical turn-around in 3-5 working days

For any information about products, please contact us.

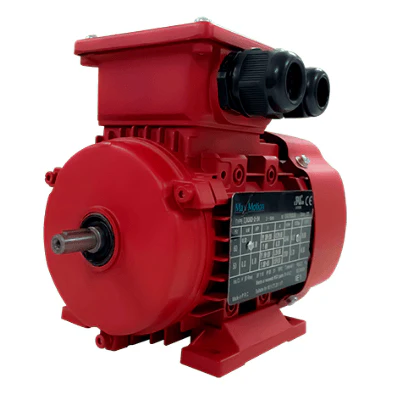

*Photos for reference purposes only.
