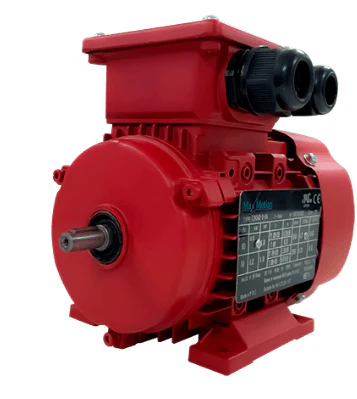

Max Motion IJA290L-2-24 | IEC Motor 3HP, 3600RPM, 208-230/460V, Frame 90L, TEFC

Product Details : Max Motion IJA290L-2-24 | IEC Motor 3HP, 3600RPM, 208-230/460V, Frame 90L, TEFC

• Part No: IJA290L-2-24
• Product Type: IEC Motor
• Brand: Max Motion

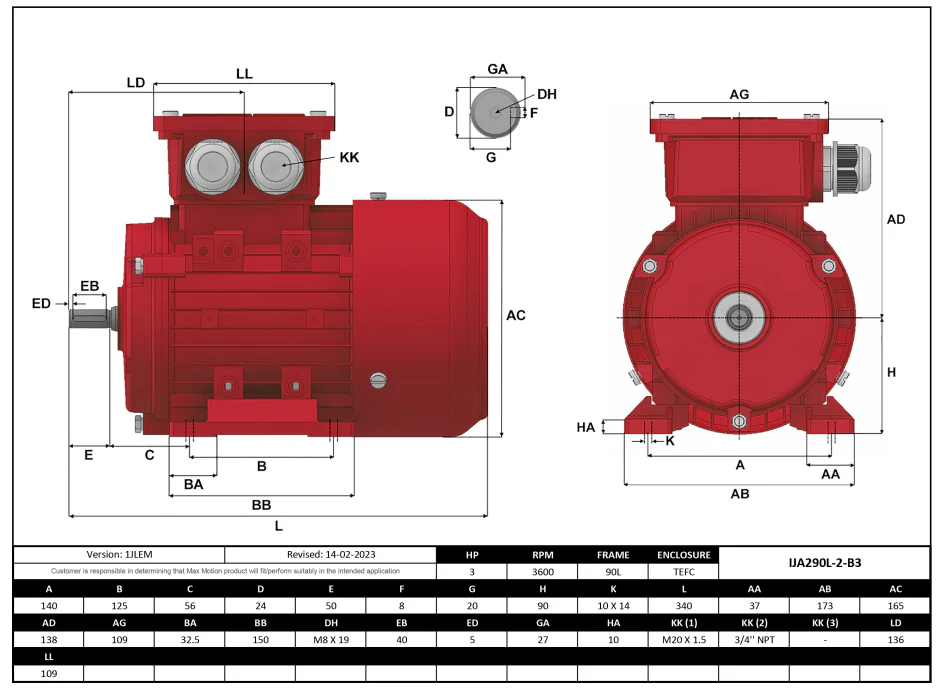

• Frame: 90L
• Horsepower (HP): 3
• RPM: 2 pôles-2500 to 3600
• Voltage: 208-230/460 (3 PH)
• F.L. Amps: 8.30-7.51/3.76
• KW: 2.24
• Frequency (Hz): 50/60 Hz
• Phase: 3
• Enclosure: TEFC
• Material(s): Aluminum
• Details:
  • Inverter Duty Magnet Wire
  • Meets or exceeds MG1 Part 31.4.4.2
  • Class H Insulation, with B Temperature Rise
  • At 60Hz : 208-230/460v Dual Rated & Plated for 50Hz : 190/380-415v
  • IP55 Inversion Protection
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque
  • 1.15 Service Factor
  • Rotatable / Removable Base 56-160
  • SKF High Temp bearings
  • 56-112 Frames come with Seal / lubricated Bearings
  • Aluminum Construction
  • IEC Design N, with NEMA B Torque characteristics
  • Terminal Blocks, Stud connection
  • B14 and B5 Flanges plus specialty flanges readily available
  • CE, cUL, cRUus Approval - Suitable for export to over 28 countries
  • Industry leading Three Years Warranty
  SPECIAL FEATURE:
  • Custom capabilities for unique voltage windings, 2 speeds, USDA wash-down, special shafts & flanges with typical turn-around in 3-5 working days
