Max Motion IJC225S-4-47 | IEC Motor 50HP, 1800RPM, 460/796V, Frame 225S, TEFC

Product Details : Max Motion IJC225S-4-47 | IEC Motor 50HP, 1800RPM, 460/796V, Frame 225S, TEFC

• Part No: IJC225S-4-47
• Product Type: IEC Motor
• Brand: Max Motion
• Frame: 225S
• Horsepower (HP): 50
• RPM: 4 pôles-1400 to 1800
• Voltage: 460/796 (3 PH)
• F.L. Amps: 57.10/33
• KW: 37.3
• Frequency (Hz): 50/60 Hz
• Phase: 3
• Enclosure: TEFC
• Material(s): Cast Iron
• Details:
  • Inverter Duty Magnet Wire
  • Meets or exceeds MG1 Part 31.4.4.2
  • Class H Insulation, with B Temperature Rise
  • At 60Hz : 460/796v Dual Rated & plated for 50Hz : 380/415-660/725v
  • IP55 Inversion Protection
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque
  • 1.15 Service Factor
  • PTC installed on frames 132 and larger
  • SKF High Temp bearings
  • Rigid Base frame 180 and larger
  • Re-Greaseable Bearings frame 132 and larger
  • Cast Iron Construction
  • IEC Design N, with NEMA B Torque characteristics
  • Terminal Blocks, Stud connection
  • B14 and B5 Flanges plus specialty flanges readily available
  • CE, cUL, cRUus Approval - Suitable for export to over 28 countries
  • Industry leading Three Years Warranty
  SPECIAL FEATURE:
  • Custom capabilities for unique voltage windings, 2 speeds, USDA wash-down, special shafts & flanges with typical turn-around in 3-5 working days

For any information about products, please contact us.

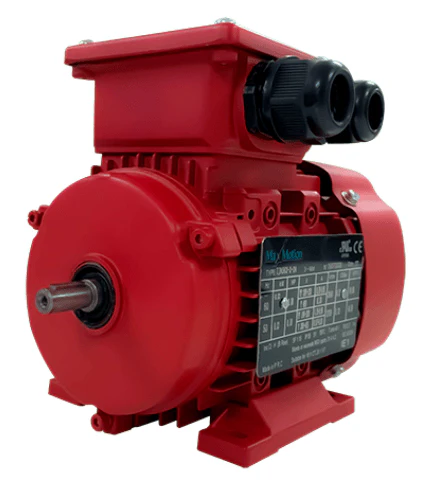

*Photos for reference purposes only.
