Max Motion IJC280M-2-47 | IEC Motor 125HP, 3600RPM, 460/796V, Frame 280M, TEFC

Product Details : Max Motion IJC280M-2-47 | IEC Motor 125HP, 3600RPM, 460/796V, Frame 280M, TEFC

• Part No: IJC280M-2-47
• Product Type: IEC Motor
• Brand: Max Motion
• Frame: 280M
• Horsepower (HP): 125
• RPM: 2 pôles-2500 to 3600
• Voltage: 460/796 (3 PH)
• F.L. Amps: 134/77.40
• KW: 93.25
• Frequency (Hz): 50/60 Hz
• Phase: 3
• Enclosure: TEFC
• Material(s): Cast Iron
• Details:
  • Inverter Duty Magnet Wire
  • Meets MG1 Part 31.4.4.2
  • Class H Insulation, with B Temp Rise
  • At 60Hz : 460/796v Dual Rated for 50Hz : 380/415-660/725v
  • IP55 weather protection
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque
  • PTC installed on frames 132 and larger
  • 1.15 Service Factor
  • Rigid Base frame 180 and larger
  • SKF High Temp bearings
  • Re-Greaseable Bearings frame 132 and larger
  • Cast Iron Construction
  • Terminal Blocks, Stud
  • B14 and B5 Flanges are available
  • CE, cUL, cRUus Approval
  • Three Years Warranty

For any information about products, please contact us.

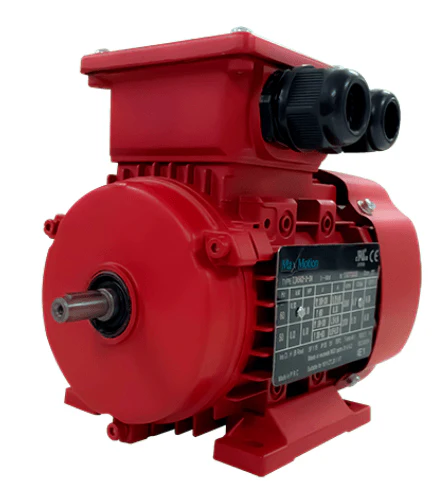

*Photos for reference purposes only.
