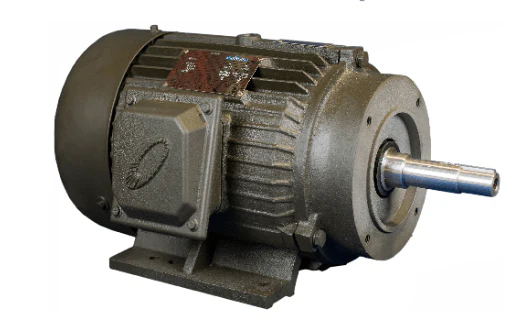

Max Motion JMPP-51 | Pump - JM Motor 30HP, 3600RPM, 575V, Frame 286JM, TEFC

Product Details : Max Motion JMPP-51 | Pump - JM Motor 30HP, 3600RPM, 575V, Frame 286JM, TEFC

• Part No: JMPP-51
• Product Type: Pump - JM Motor
• Brand: Max Motion
• Frame: 286JM
• Horsepower (HP): 30
• RPM: 2 pôles-2500 to 3600
• Voltage: 575 (3 PH)
• Phase: 3
• Enclosure: TEFC
• Material(s): Cast Iron
• Details:
  • MG-1 Design B and MG-1 Part 31
  • Meets or exceeds NEMA Premium Efficiencies
  • Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F&G.
  • Meets Temperature Code T2B.
  • At 60Hz : 575v
  • IP55 enclosure.
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF.
  • Meets MG1 parts 31.4.4.2
  • 1.25 Service Factor 1-50HP, 1.15 Service Factor 60-300HP
  • Class F Insulation
  • C and D Flanges are available
  • F1 Standard Assembly, Reversible to F2 Assembly
  • CSAus & CE Certified
  • Three Years Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
