Max Motion JMPP-56 | Pump - JM Motor 40HP, 3600RPM, 575V, Frame 324JM, TEFC

Max Motion JMPP-56 | Pump - JM Motor 40HP, 3600RPM, 575V, Frame 324JM, TEFC

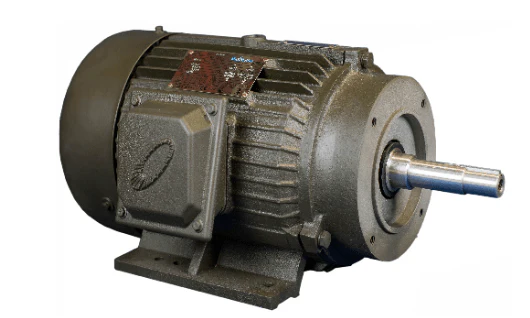

Product Details : Max Motion JMPP-56 | Pump - JM Motor 40HP, 3600RPM, 575V, Frame 324JM, TEFC

  • Part No: JMPP-56
  • Product Type: Pump - JM Motor
  • Brand: Max Motion
  • Frame: 324JM
  • Horsepower (HP): 40
  • RPM: 2 pôles-2500 to 3600
  • Voltage: 575 (3 PH)
  • Phase: 3
  • Enclosure: TEFC
  • Material(s): Cast Iron
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F&G.
    • Meets Temperature Code T2B.
    • At 60Hz : 575v
    • IP55 enclosure.
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF.
    • Meets MG1 parts 31.4.4.2
    • 1.25 Service Factor 1-50HP, 1.15 Service Factor 60-300HP
    • Class F Insulation
    • C and D Flanges are available
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Years Warranty

For any information about products, please contact us.

*Photos for reference purposes only.

$827.67

Original: $2,364.78

-65%
Max Motion JMPP-56 | Pump - JM Motor 40HP, 3600RPM, 575V, Frame 324JM, TEFC—

$2,364.78

$827.67
Product image 1
Product image 2

Description

Product Details : Max Motion JMPP-56 | Pump - JM Motor 40HP, 3600RPM, 575V, Frame 324JM, TEFC

  • Part No: JMPP-56
  • Product Type: Pump - JM Motor
  • Brand: Max Motion
  • Frame: 324JM
  • Horsepower (HP): 40
  • RPM: 2 pôles-2500 to 3600
  • Voltage: 575 (3 PH)
  • Phase: 3
  • Enclosure: TEFC
  • Material(s): Cast Iron
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F&G.
    • Meets Temperature Code T2B.
    • At 60Hz : 575v
    • IP55 enclosure.
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF.
    • Meets MG1 parts 31.4.4.2
    • 1.25 Service Factor 1-50HP, 1.15 Service Factor 60-300HP
    • Class F Insulation
    • C and D Flanges are available
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Years Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
