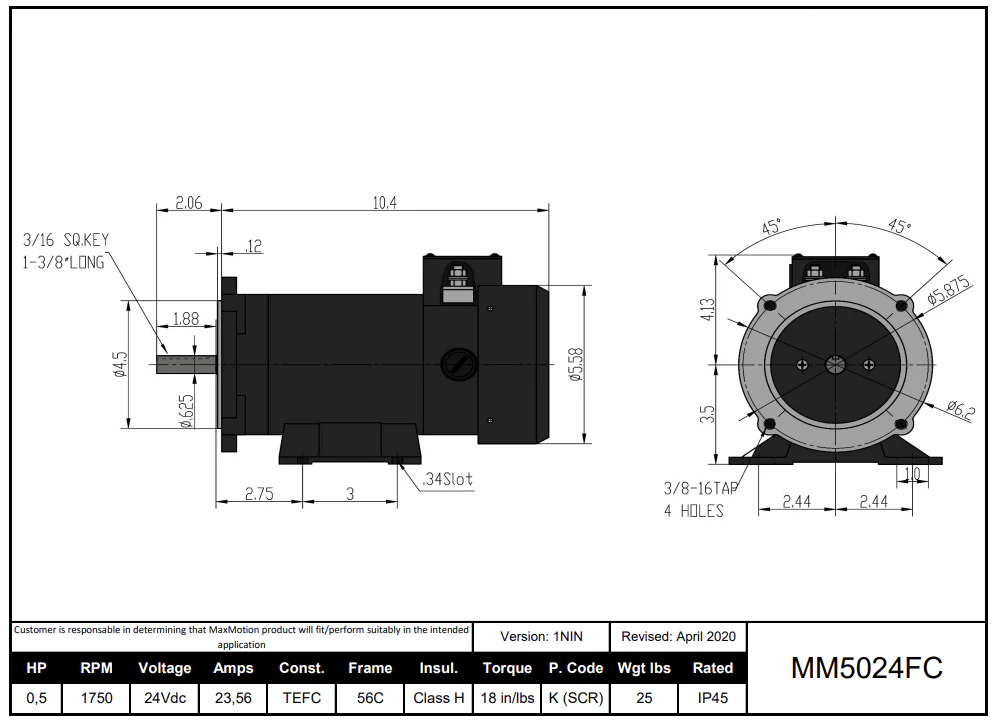

Max Motion MM5024FC | DC Motor 1/2HP, 1750RPM, 24V (DC), Frame 56C, TEFC

Product Details : Max Motion MM5024FC | DC Motor 1/2HP, 1750RPM, 24V (DC), Frame 56C, TEFC

• Part No: MM5024FC
• Product Type: DC Motor
• Brand: Max Motion
• Frame: 56C
• Horsepower (HP): 1/2
• RPM: 4 pôles-1400 to 1750
• Voltage: 24V (DC)
• Torque (IN/LBS): 18
• F.L. Amps: 23.56
• Enclosure: TEFC
• Material(s): Rolled Steel
• Details:
  • Class F Insulation
  • IP45 Rated
  • NEMA C-Face with Removable Base
  • Highest Quality Permanent Magnets for High Starting Torque and Increased Efficiency
  • Permanently Lubricated Sealed Ball Bearings
  • Linear Speed/Torque Throughout Speed Range 20:1 CT
  • ROHS Compliant
  • UL Recognized and CSA Certified

For any information about products, please contact us.

*Photos for reference purposes only.
