Max Motion MPOP-57 | T-Frame Motor 40HP, 1800RPM, 575V, Frame 324T, ODP, Cast Iron

Max Motion MPOP-57 | T-Frame Motor 40HP, 1800RPM, 575V, Frame 324T, ODP, Cast Iron

Product Details : Max Motion MPOP-57 | T-Frame Motor 40HP, 1800RPM, 575V, Frame 324T, ODP, Cast Iron

  • Part No: MPOP-57
  • Product Type: T-Frame ODP
  • Brand: Max Motion
  • Frame: 324T
  • Horsepower (HP): 40
  • RPM: 4 pôles-1400 to 1800
  • Voltage: 575 (3 PH)
  • F.L. Amps: 38.40
  • Phase: 3
  • Enclosure: ODP
  • Base: Rigid
  • Material(s): Cast Iron
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Meets Temperature Code T2B
    • IP23 enclosure
    • 143T to 215T Frame are Rolled Steel Construction
    • 254T Frame and highter are Cast Iron Construction
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
    • Meets MG1 parts 31.4.4.2
    • 1.15 Service Factor
    • Class F Insulation
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Year Warranty

For any information about products, please contact us.

*Photos for reference purposes only.

$749.00

Original: $2,140.01

-65%
Max Motion MPOP-57 | T-Frame Motor 40HP, 1800RPM, 575V, Frame 324T, ODP, Cast Iron—

$2,140.01

$749.00

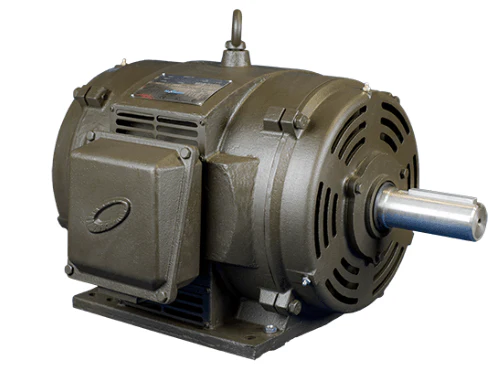

Product image 1

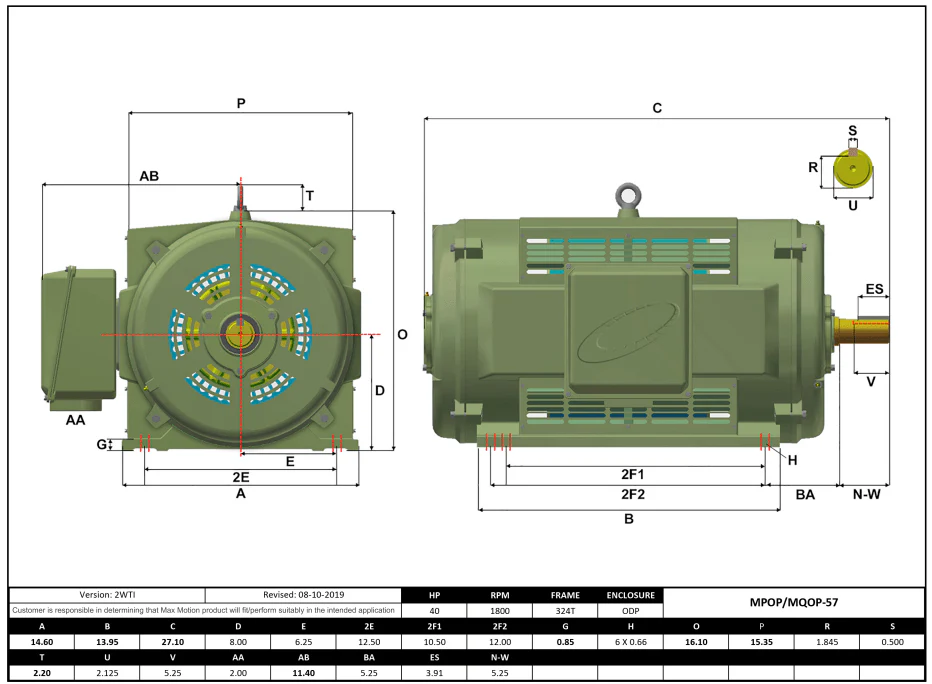

Product image 2

Description

Product Details : Max Motion MPOP-57 | T-Frame Motor 40HP, 1800RPM, 575V, Frame 324T, ODP, Cast Iron

  • Part No: MPOP-57
  • Product Type: T-Frame ODP
  • Brand: Max Motion
  • Frame: 324T
  • Horsepower (HP): 40
  • RPM: 4 pôles-1400 to 1800
  • Voltage: 575 (3 PH)
  • F.L. Amps: 38.40
  • Phase: 3
  • Enclosure: ODP
  • Base: Rigid
  • Material(s): Cast Iron
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Meets Temperature Code T2B
    • IP23 enclosure
    • 143T to 215T Frame are Rolled Steel Construction
    • 254T Frame and highter are Cast Iron Construction
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
    • Meets MG1 parts 31.4.4.2
    • 1.15 Service Factor
    • Class F Insulation
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Year Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
