Max Motion MPOP-88 | T-Frame Motor 150HP, 1200RPM, 575V, Frame 447T, ODP, Cast Iron

Product Details : Max Motion MPOP-88 | T-Frame Motor 150HP, 1200RPM, 575V, Frame 447T, ODP, Cast Iron

• Part No: MPOP-88
• Product Type: T-Frame ODP
• Brand: Max Motion
• Frame: 447T
• Horsepower (HP): 150
• RPM: 6 pôles-950 to 1200
• Voltage: 575 (3 PH)
• F.L. Amps: 138
• Phase: 3
• Enclosure: ODP
• Base: Rigid
• Material(s): Cast Iron
• Details:
  • MG-1 Design B and MG-1 Part 31
  • Meets or exceeds NEMA Premium Efficiencies
  • Meets Temperature Code T2B
  • IP23 enclosure
  • 143T to 215T Frame are Rolled Steel Construction
  • 254T Frame and highter are Cast Iron Construction
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
  • Meets MG1 parts 31.4.4.2
  • 1.15 Service Factor
  • Class F Insulation
  • F1 Standard Assembly, Reversible to F2 Assembly
   • CSAus & CE Certified
  • Three Year Warranty *** Bearing modification may be required before flange kit can be installed. Contact your sales office for verification, and additional costs. ***

For any information about products, please contact us.

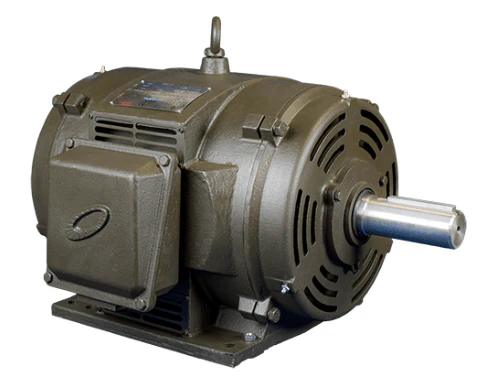

*Photos for reference purposes only.
