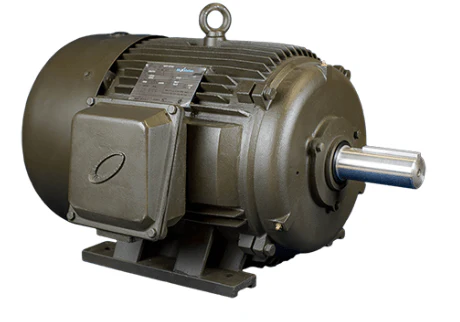

Max Motion MPP-21 | T-Frame Motor 5HP, 3600RPM, 575V, Frame 184T, TEFC, Cast Iron

Product Details : Max Motion MPP-21 | T-Frame Motor 5HP, 3600RPM, 575V, Frame 184T, TEFC, Cast Iron

• Part No: MPP-21
• Product Type: T-Frame TEFC
• Brand: Max Motion
• Frame: 184T
• Horsepower (HP): 5
• RPM: 2 pôles-2500 to 3600
• Voltage: 575 (3 PH)
• F.L. Amps: 4.6
• Phase: 3
• Enclosure: TEFC
• Base: Rigid
• Material(s): Cast Iron
• Details:
  • MG-1 Design B and MG-1 Part 31
  • Meets or exceeds NEMA Premium Efficiencies
  • Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
  • Meets Temperature Code T2B
  • IP55 enclosure
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
  • Meets MG1 parts 31.4.4.2
  • 1.25 Service Factor 1-50HP, 1.15 60-300HP
  • Class F Insulation
  • F1 Standard Assembly, Reversible to F2 Assembly
  • CSAus & CE Certified
  • Three Year Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
