Max Motion MPSP-1004TL | NEMA Motor 10HP, 1800RPM, 575V, Frame 215TC, TEFC, Rigid Base

Product Details : Max Motion MPSP-1004TL | NEMA Motor 10HP, 1800RPM, 575V, Frame 215TC, TEFC, Rigid Base

• Part No: MPSP-1004TL
• Product Type: NEMA Motor
• Brand: Max Motion

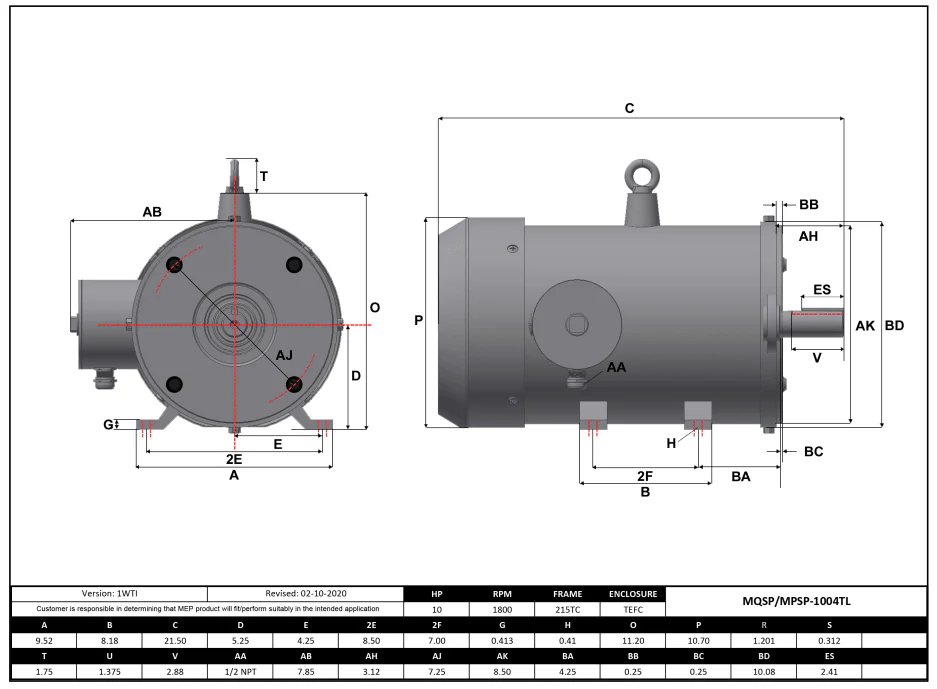

• Frame: 215TC
• Horsepower (HP): 10
• RPM: 4 pôles-1400 à 1800
• Voltage: 575 (3 PH)
• F.L. Amps: 9.79
• Phase: 3
• Enclosure: TEFC
• Base: Rigid
• Material(s): Stainless Steel
• Details:
  • Inverter Duty Magnet Wire
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque
  • Meets or exceeds MG1 Part 31.4.4.2
  • Meets or exceeds MEPS (Minimum Efficiency Performance Standards) as described by US Department of Energy in docket 10CFR431 and Natural Resources Canada’s Amendment 14
  • NEMA Design B Torque characteristics
  • Class F Insulation, with B Temperature Rise
  • At 60Hz : 575v
  • IP69K Ingress Protection which can withstand water pressure up to 1450 psi at temperature of 176°F/80°C.
  • Round Terminal Box with encapsulated lead wires
  • VPI with additional dip and Bake
  • Viton Seal installed on both shaft ends with stainless steel shaft slinger
  • Four condensation plugs on each end shield for mounting flexibility
  • Bonded Stainless Steel Washers
  • 304 Grade Stainless Steel Construction
  • 1.15 Service Factor
  • Rigid base
  • CSAus & CE Certified
  • Three Year Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
