Max Motion MQOP-13 | T-Frame Motor 2HP, 1200RPM, 208-230/460V, Frame 184T, ODP, Rolled Steel

Max Motion MQOP-13 | T-Frame Motor 2HP, 1200RPM, 208-230/460V, Frame 184T, ODP, Rolled Steel

Product Details : Max Motion MQOP-13 | T-Frame Motor 2HP, 1200RPM, 208-230/460V, Frame 184T, ODP, Rolled Steel

  • Part No: MQOP-13
  • Product Type: T-Frame ODP
  • Brand: Max Motion
  • Frame: 184T
  • Horsepower (HP): 2
  • RPM: 6 pôles-950 to 1200
  • Voltage: 208-230/460 (3 PH)
  • F.L. Amps: 6.6-6/3
  • Phase: 3
  • Enclosure: ODP
  • Base: Rigid
  • Material(s): Rolled Steel
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Meets Temperature Code T2B
    • At 60Hz : 208-230/416-460v Dual Rated for 50Hz : 190/380-415v
    • IP23 enclosure
    • 143T to 215T Frame are Rolled Steel Construction
    • 254T Frame and highter are Cast Iron Construction
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
    • Meets MG1 parts 31.4.4.2
    • 1.15 Service Factor
    • Class F Insulation
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Year Warranty

For any information about products, please contact us.

*Photos for reference purposes only.

$141.04

Original: $402.98

-65%
Max Motion MQOP-13 | T-Frame Motor 2HP, 1200RPM, 208-230/460V, Frame 184T, ODP, Rolled Steel—

$402.98

$141.04

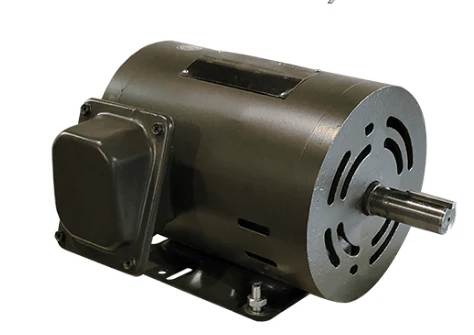

Product image 1
Product image 2

Description

Product Details : Max Motion MQOP-13 | T-Frame Motor 2HP, 1200RPM, 208-230/460V, Frame 184T, ODP, Rolled Steel

  • Part No: MQOP-13
  • Product Type: T-Frame ODP
  • Brand: Max Motion
  • Frame: 184T
  • Horsepower (HP): 2
  • RPM: 6 pôles-950 to 1200
  • Voltage: 208-230/460 (3 PH)
  • F.L. Amps: 6.6-6/3
  • Phase: 3
  • Enclosure: ODP
  • Base: Rigid
  • Material(s): Rolled Steel
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Meets Temperature Code T2B
    • At 60Hz : 208-230/416-460v Dual Rated for 50Hz : 190/380-415v
    • IP23 enclosure
    • 143T to 215T Frame are Rolled Steel Construction
    • 254T Frame and highter are Cast Iron Construction
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
    • Meets MG1 parts 31.4.4.2
    • 1.15 Service Factor
    • Class F Insulation
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Year Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
