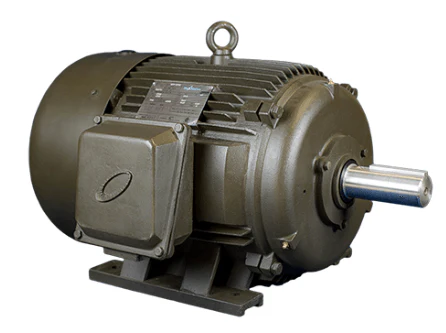

Max Motion MQP-89 | T-Frame Motor 150HP, 900RPM, 460V, Frame 449T, TEFC, Cast Iron

Product Details : Max Motion MQP-89 | T-Frame Motor 150HP, 900RPM, 460V, Frame 449T, TEFC, Cast Iron

• Part No: MQP-89
• Product Type: T-Frame TEFC
• Brand: Max Motion
• Frame: 449T
• Horsepower (HP): 150
• RPM: 8 pôles-750 to 900
• Voltage: 460 (3 PH)
• F.L. Amps: 186
• Phase: 3
• Enclosure: TEFC
• Base: Rigid
• Material(s): Cast Iron
• Details:
  • MG-1 Design B and MG-1 Part 31
  • Meets or exceeds NEMA Premium Efficiencies
  • Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F&G.
  • Meets Temperature Code T2B.
  • At 60Hz : 416/460-480v Dual Rated for 50Hz : 380-415v
  • IP55 enclosure.
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF.
  • Meets MG1 parts 31.4.4.2
  • 1.25 Service Factor 1-50HP, 1.15 Service Factor 60-300HP
  • Class F Insulation
  • C and D Flanges are available
  • F1 Standard Assembly, Reversible to F2 Assembly
  • CSAus & CE Certified
  • Three Years Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
