NOARK® Molded Case Circuit Breaker 150A, 3P IC Class S | M2S150T3L

• NOARK® Manual

Product Details : NOARK® Molded Case Circuit Breaker 150A, 3P IC Class S | M2S150T3L

• Part No: M2S150T3L
• Product Type: NOARK® Molded Case Circuit Breaker
• Brand: NOARK®
• Series: Ex9M2
• IC Class: S (Standard Interrupting Capacity)
• Frame Size: Frame M2
• Interrupting Capacity:
  •35kA @ 480Vac
  •50kA @ 240Vac
  •14kA @ 600Vac
• Rated Voltage: 50kA @ 240Vac
• Rated Current (Amps): 150A
• No. Of Poles: 3
• Rated Code: 80%
• Trip Unit: Adjustable Thermal/Adjustable Magnetic
• Terminal Type: Lug Line/Load Side
• Limited Warranty: 5 Years
• Certifications:
  •UL 489 Listed, File Number E355392
  •Certified for Canada CSA standards 22.2 No. 5 under cUL testing
  •IEC/EN 60947-2
  •CE Compliant
  •UL489B, File Number E513573

For any information about products, please contact us.

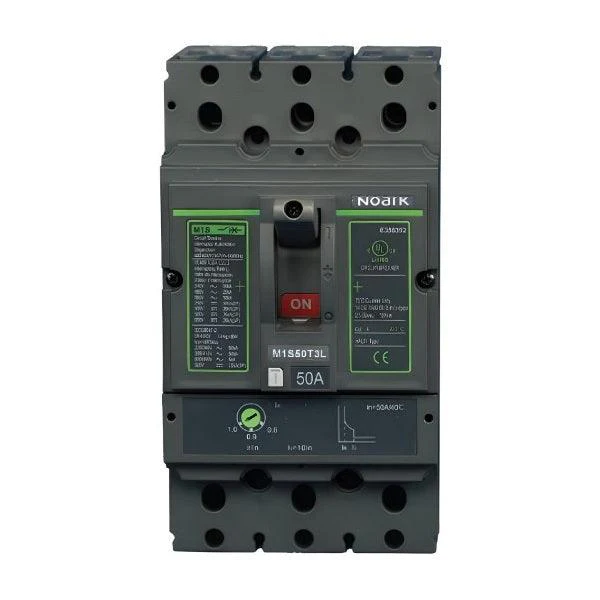

*Photos for reference purposes only.
