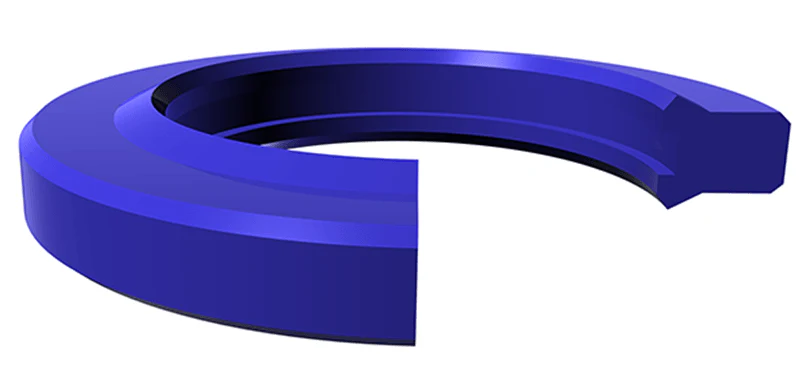

PFS-08 | PFS Split Flange Seal (SAE) 1/2" - Polyurethane

Product Details : PFS-08 | PFS Split Flange Seal (SAE) 1/2" - Polyurethane

• Part No: PFS-08
• Product Category: O-Rings
• Product Type: Split Flange Seal (SAE)
• Profile: PFS
• Material(s): Polyurethane
• Material Code: AU
• Durometer: 93A
• Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Pressure Range: ≤ 7250 PSI (≤ 500 Bar)
• System Of Measurement: Inch
• Replaces O-Ring: -210
• SAE Flange Size: 1/2"
• Nominal Dimensions: 3/4" x 1" x 1/8"
• Nominal I.D. (d): 3/4"
• Nominal O.D. (D): 1"
• Nominal Height (H): 1/8"
• Actual Height (IN): 0.112"
• Actual Cross Section: 0.165"
• Details:
  •PFS flange seals are designed to retrofit o-rings on all 4-bolt flanges in SAE standard J518C Code 61/62

For any information about products, please contact us.

*Photos for reference purposes only.
