Piston Cup (CF) 2.000" x 0.500" (H) x 0.125" (TK) - Neo-Fabric

Product Details : Piston Cup (CF) 2.000" x 0.500" (H) x 0.125" (TK) - Neo-Fabric

• Part No: CF020000500
• Product Category: Piston Cups
• Product Type: Piston Cup
• Profile: CF
• Material(s): Neo-Fabric
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Pressure Range: ≤ 3000 PSI (≤ 210 Bar)
• Surface Speed: < 3 ft/s (1 m/s)
• System Of Measurement: Inch
• Bore Diameter: 2.000"

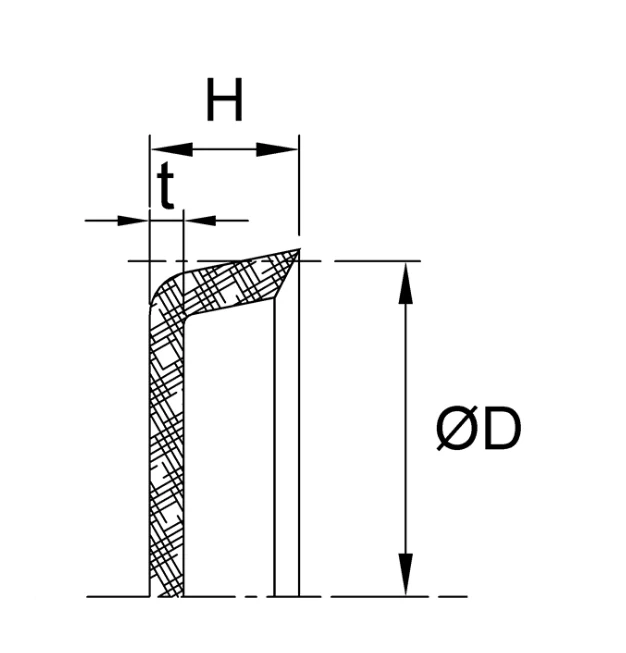

• Dimensions: 2.000" x 0.500" (H) x 0.125" (TK)
• Nominal O.D. (D): 2.000"
• Nominal Thickness (t): 0.125"
• Nominal Height (H): 0.500"
• Details:
  •These fabric-reinforced cups are primarily used on hydraulic piston heads, plungers or rams

For any information about products, please contact us.

*Photos for reference purposes only.
