Piston Seals (BP) 2.500" x 2.125" x 0.265" - Polyurethane/Nitrile

Product Details : Piston Seals (BP) 2.500" x 2.125" x 0.265" - Polyurethane/Nitrile

• Part No: BP330A/4304
• Product Category: Piston Seals
• Product Type: Piston Seal
• Profile: BP
• O-Ring Dash No.: -330
• No. Of Pieces: 2PCS
• Material(s): Polyurethane/Nitrile
• Material Code: AU/NBR
• Temperature Range: -30°F to +250°F (-34°C to +121°C)
• Pressure Range: ≤ 7000 PSI (≤ 483 Bar)
• Surface Speed: < 1.6 ft/s (0.5 m/s)
• System Of Measurement: Inch
• Bore Diameter: 2.500"
• Dimensions: 2.500" x 2.125" x 0.265"
• Nominal I.D. (d): 2.125"
• Nominal O.D. (D): 2.500"
• Nominal Height (H): 0.265"
• Nominal Cross Section: 0.187"
• Details:
  •Squeeze-type, bi-directional piston seal for use in light to medium to heavy-duty hydraulic applications.

For any information about products, please contact us.

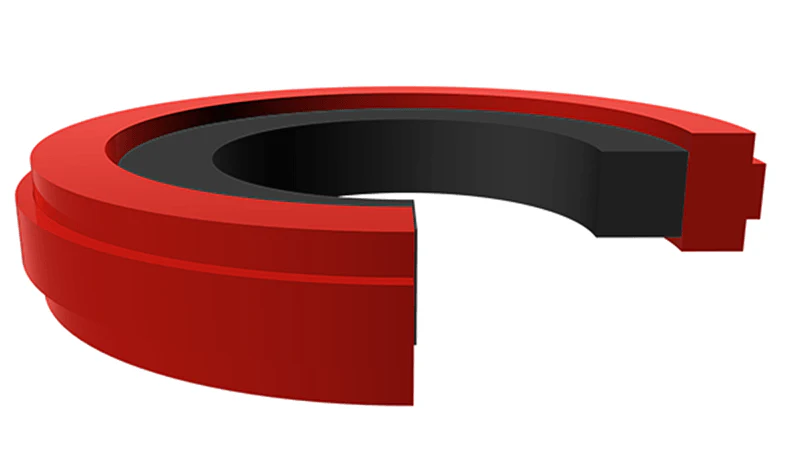

*Photos for reference purposes only.
