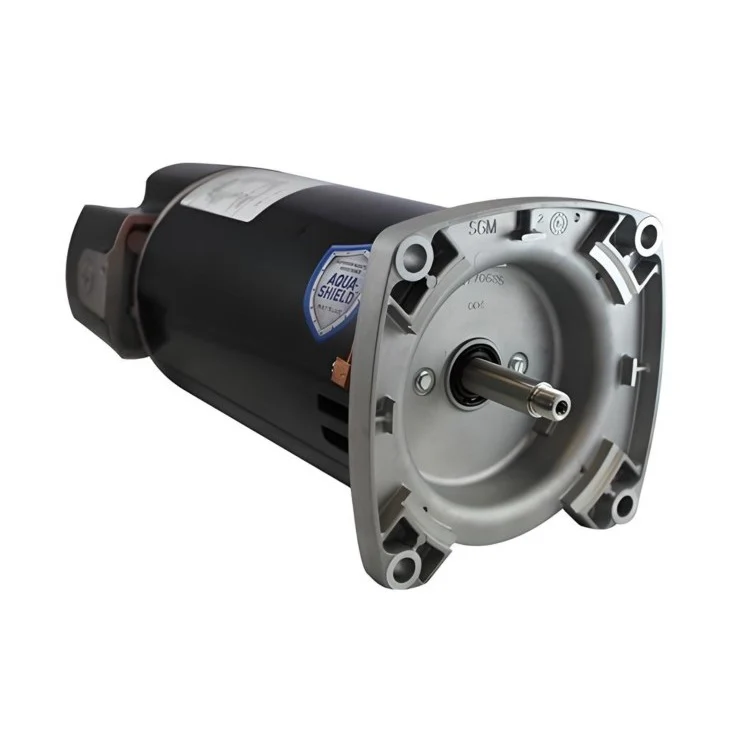

US Motors ASQ125 | Pool & Spa motor 1.25HP, 3450RPM, 115/208-230V, Frame 48Y, ODP

• Dimension Print Available Here

Product Details : US Motors ASQ125 | Pool & Spa motor 1.25HP, 3450RPM, 115/208-230V, Frame 48Y, ODP

• Part No: ASQ125
• Product Type: Pool & Spa motor
• Brand: US Motors - Nidec
• Frame: 48Y
• Enclosure: ODP
• Horsepower (HP): 1.25
• Poles: 2
• RPM: 3450
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 14.0/7.0
• Features:
  • Two Compartment
  • Shaft Threads: - 1/2-20 - UNF-2A
  • 50°C Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Open Drip proof
  • Sealed Ball Bearings
  • Thermally Protected
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Voltage Selection Device (Dual Voltage Only)
  • Optimized internal airflow design minimizes heat and moisture buildup inside the motor
  • Internal bearing cover protects the drive/pump end ball bearing from water and debris that may occur inside of the motor
  • Three additional layers of drive/pump end bearing protection:
  - Double Sealed Ball Bearing
  - Lip Seal
  - Water Slinger

For any information about products, please contact us.

*Photos for reference purposes only.
