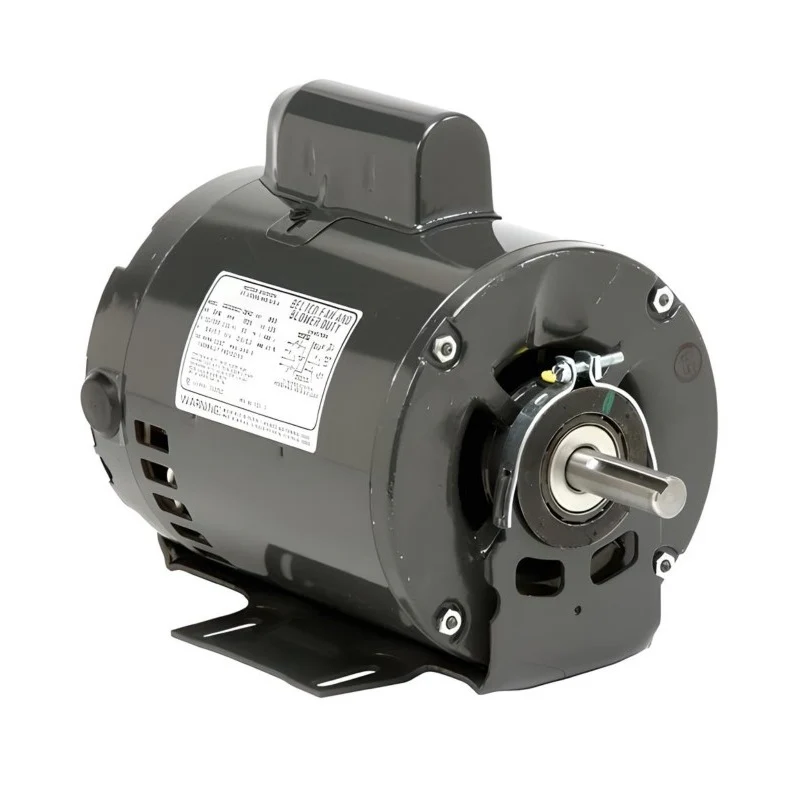

US Motors D1CPA2PH9 | General Purpose Motor 1HP, 1800RPM, 115/208-230V, Frame 56H, ODP

• Dimension Print Available Here

Product Details : US Motors D1CPA2PH9 | General Purpose Motor 1HP, 1800RPM, 115/208-230V, Frame 56H, ODP

• Part No: D1CPA2PH9
• Product Type: General Purpose Motor
• Categories: General Purpose Capacitor Start
• Brand: US Motors - Nidec
• Frame: 56H
• Enclosure: ODP
• Horsepower (HP): 1
• Poles: 4
• RPM: 1800
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 8.8/4.4
• Features:
  • Reversible Rotation
  • 40°C Ambient
  • Class B Insulation
  • Continuous Duty
  • Double Shielded Ball Bearings
  • F1 Assembly
  • Reversible Rotation
  • Meet US DOE Legislation

For any information about products, please contact us.

*Photos for reference purposes only.
