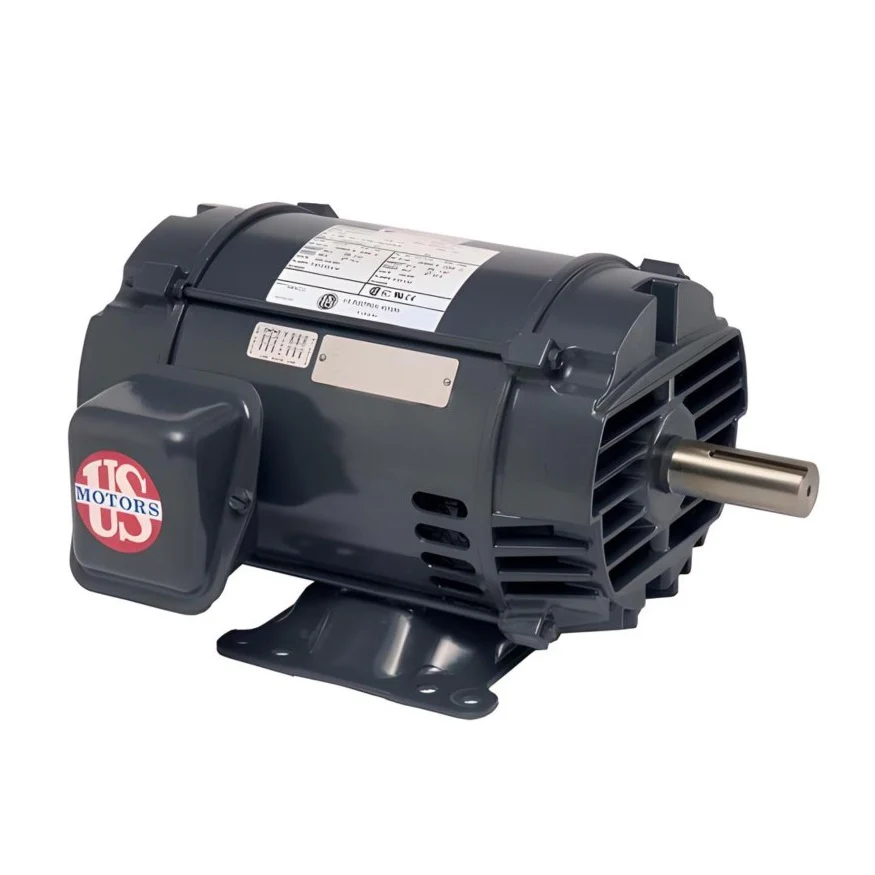

US Motors D40P2G | T-Frame Motor 40HP, 1800RPM, 575V, Frame 324T, ODP

• Dimension Print Available Here

Product Details : US Motors D40P2G | T-Frame Motor 40HP, 1800RPM, 575V, Frame 324T, ODP

• Part No: D40P2G
• Product Type: T-Frame - ODP
• Categories: NEMA Premium Efficient
• Brand: US Motors - Nidec
• Frame: 324T
• Enclosure: ODP
• Horsepower (HP): 40
• Poles: 4
• RPM: 1800
• Voltage: 575V
• Phase: 3
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 37
• Features:
  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame 56-320, Cast Iron Frame 360-440
  • Aluminum End Shields 56-250, Cast Iron End Shields 280-440
  • CE Mark On Nameplate (140 Frame & Larger)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • 1.15 Service Factor
  • Regreasable Bearings 210 Frame & Up
  • Double Shielded Bearings 140-400, Open on 440
  • Bearing Caps On 400 & 440 Frames
  • F1 Assembly Position except where noted
  • Lifting Provisions 180 Frame & Up
  • Conversion Kits: Drip Cover Kits (140-320 Frame)

For any information about products, please contact us.

*Photos for reference purposes only.
