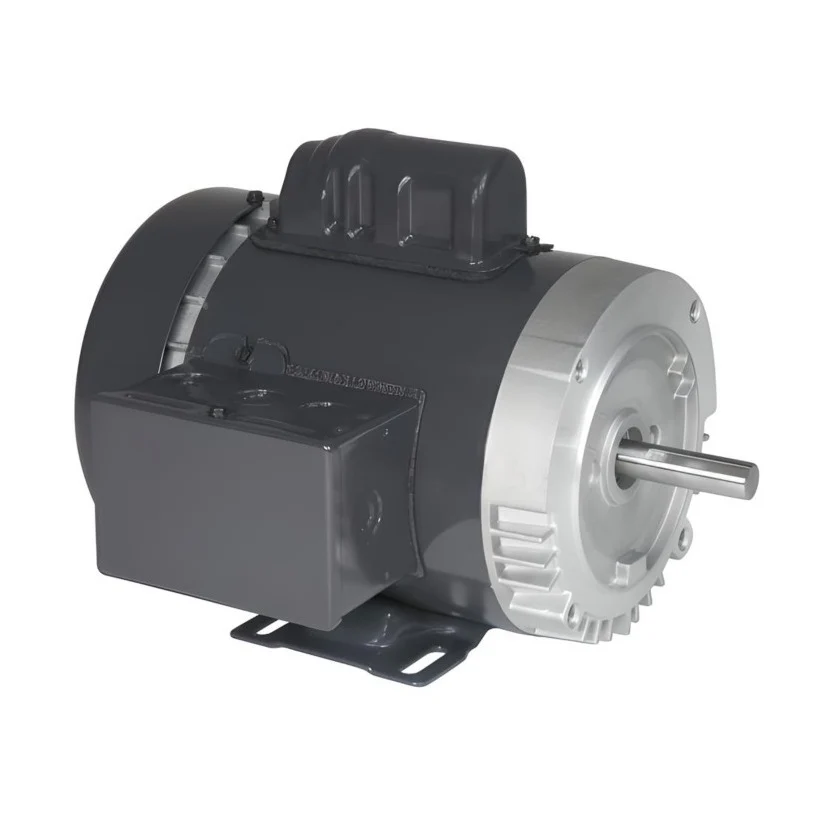

US Motors EU03 | Pump Motor 1/2HP, 3600RPM, 115/208-230V, Frame 56J, TEFC

• Dimension Print Available Here

Product Details : US Motors EU03 | Pump Motor 1/2HP, 3600RPM, 115/208-230V, Frame 56J, TEFC

• Part No: EU03
• Product Type: Pump Motor
• Brand: US Motors - Nidec
• Frame: 56J
• Mounting: C-Face / Removable Base
• Enclosure: TEFC
• Horsepower (HP): 1/2
• Poles: 2
• RPM: 3600
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 7.8/4.1-3.9
• Features: • Double Sealed Ball Bearings • Class B Insulation, Continuous Duty, 40°C Ambient • 50/60Hz Motors have 1.0 SF on 50Hz (See motors with Note 98) • Premium 303 Stainless Steel shaft • 56J Mount: 7/17-20 UNC-2A
