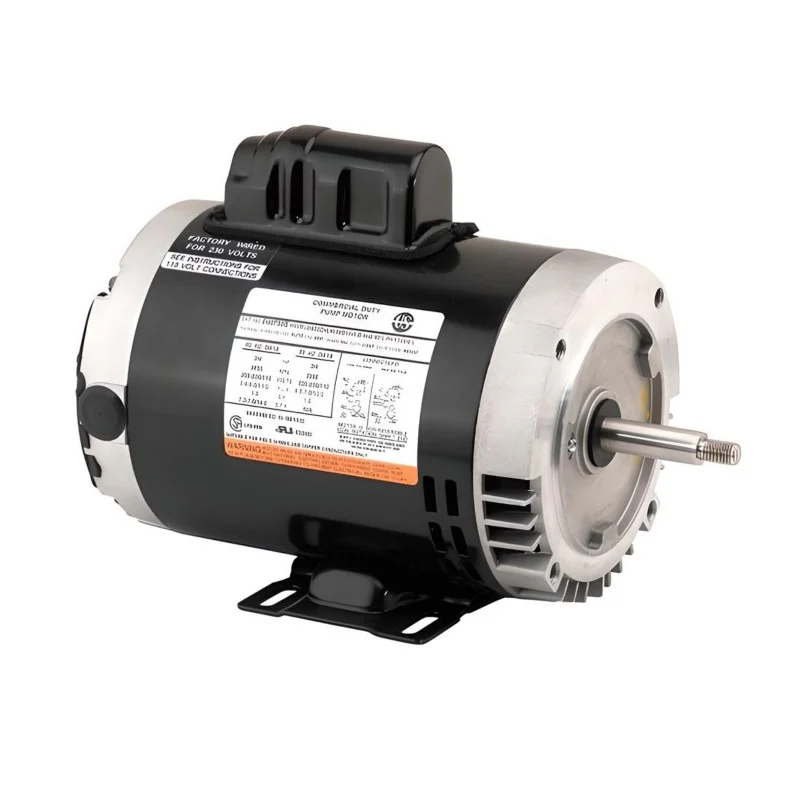

US Motors EU1502B | Pump Motor 1.5HP, 3600RPM, 115/208-230V, Frame 56J, ODP

• Dimension Print Available Here

Product Details : US Motors EU1502B | Pump Motor 1.5HP, 3600RPM, 115/208-230V, Frame 56J, ODP

• Part No: EU1502B
• Product Type: Pump Motor
• Brand: US Motors - Nidec
• Frame: 56J
• Mounting: C-Face
• Enclosure: ODP
• Horsepower (HP): 1.5
• Poles: 2
• RPM: 3600
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 18.2/9.2-9.1
• Features:
  • Double Sealed Ball Bearings
  • Class B Insulation, Continuous Duty, 40°C Ambient
  • 50/60Hz Motors have 1.0 SF on 50Hz (See motors with Note 98)
  • Premium 303 Stainless Steel shaft
  • 56J Mount: 7/17-20 UNC-2A

For any information about products, please contact us.

*Photos for reference purposes only.
